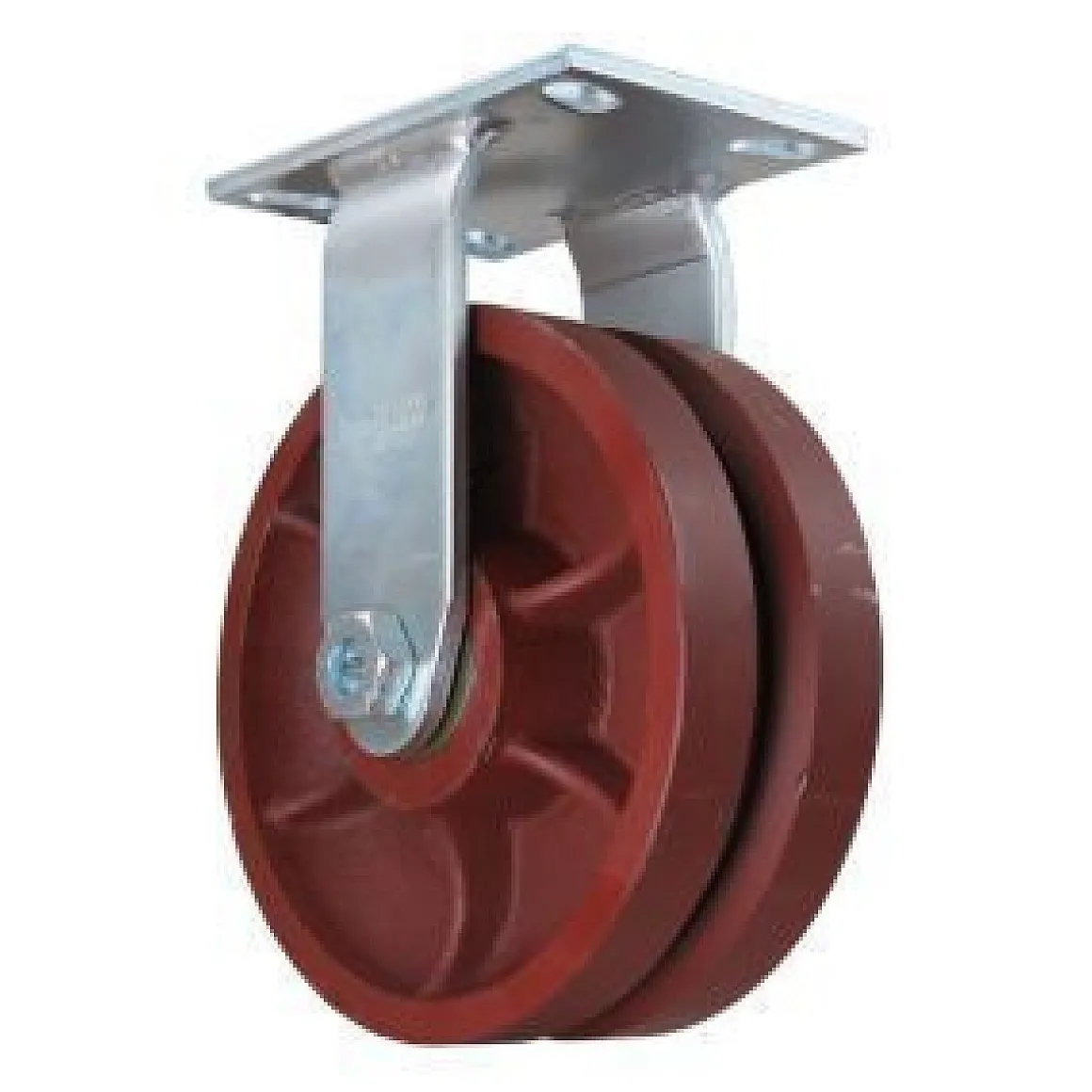

8″ Ductile Steel V-Groove Rigid Caster

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  10-1/8″

• Weight Capacity

  5,000 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Ductile Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Axle Type

  Zirc Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +250 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Groove Width

  7/8″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  25.5 lbs

You’re viewing caster SKU 830-R-DV This product is an 8″ Ductile Steel V-Groove Rigid Caster with a weight capacity of 5,000 lbs. per caster. This product has an overall height of 10-1/8″. Additional product specs can be found on the Specifications tab of this product page.
