8″ CC Axis Dual-Swivel Maintenance-Free CC Stout HD Caster

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  11-1/2″

• Weight Capacity

  1,750 lbs.

• Wheel Brand

  CC Stout HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Maintenance-Free Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  11″

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  29.7 lbs

You’re viewing caster SKU CC-7151-800200-40-T2

This caster is a true ergonomic game-changer!

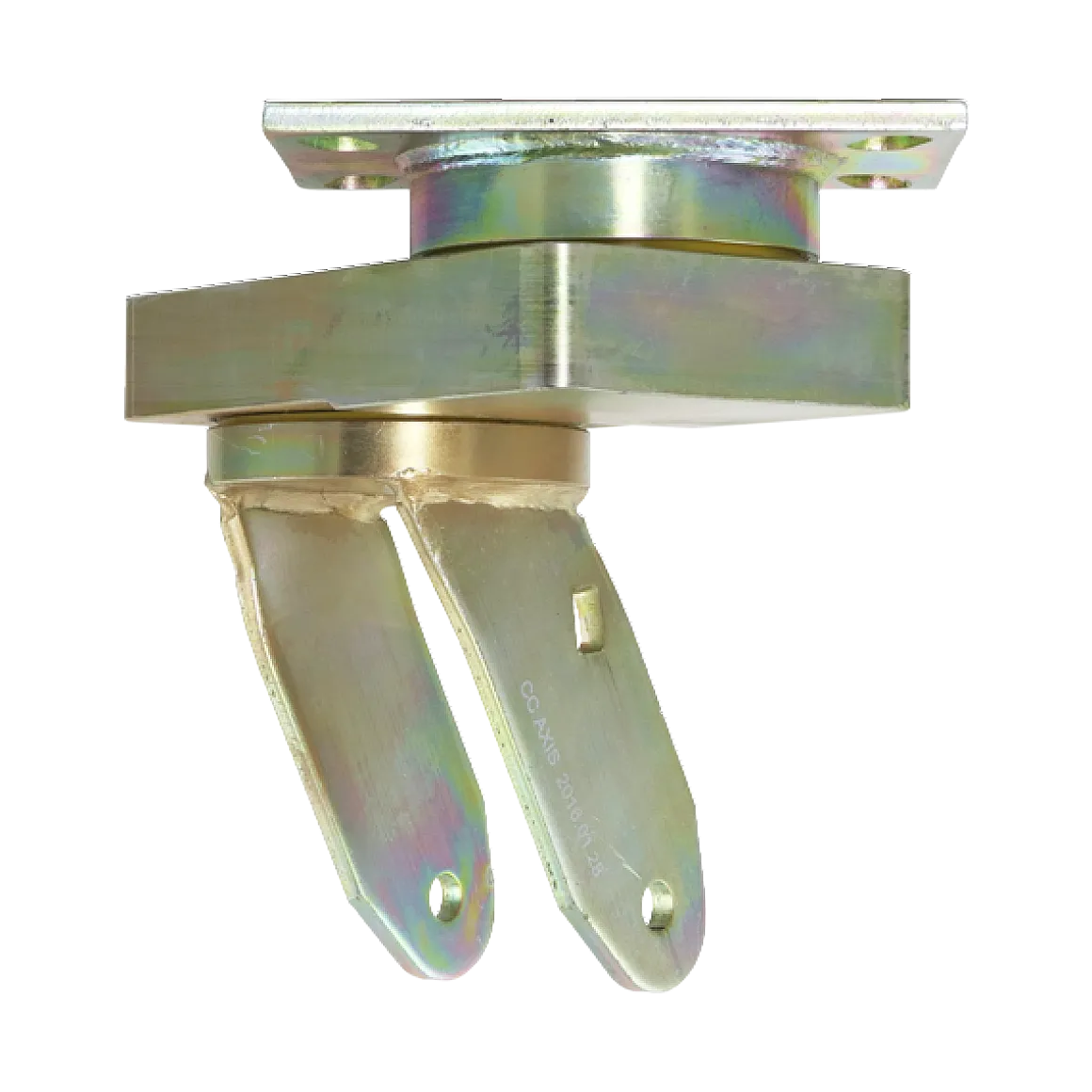

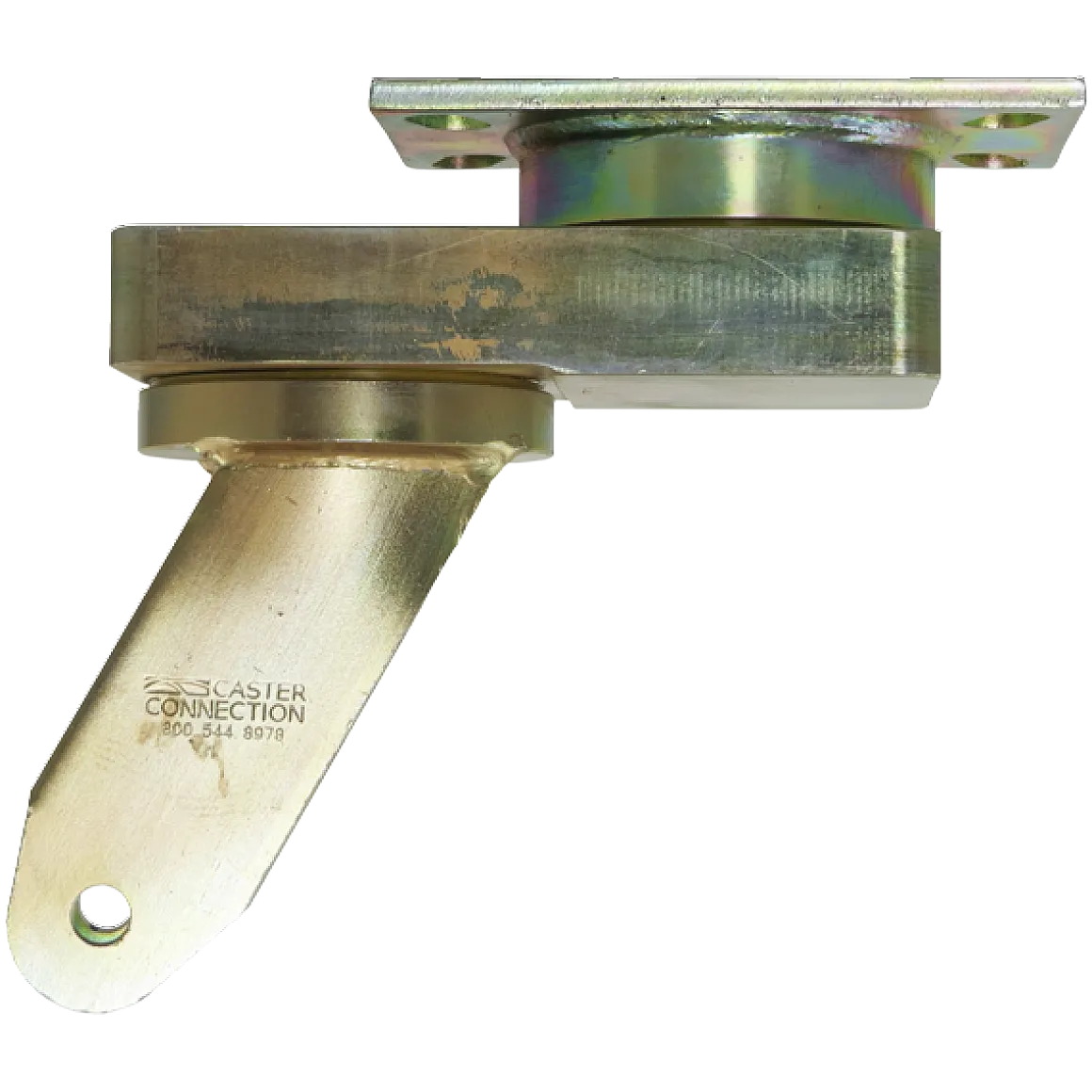

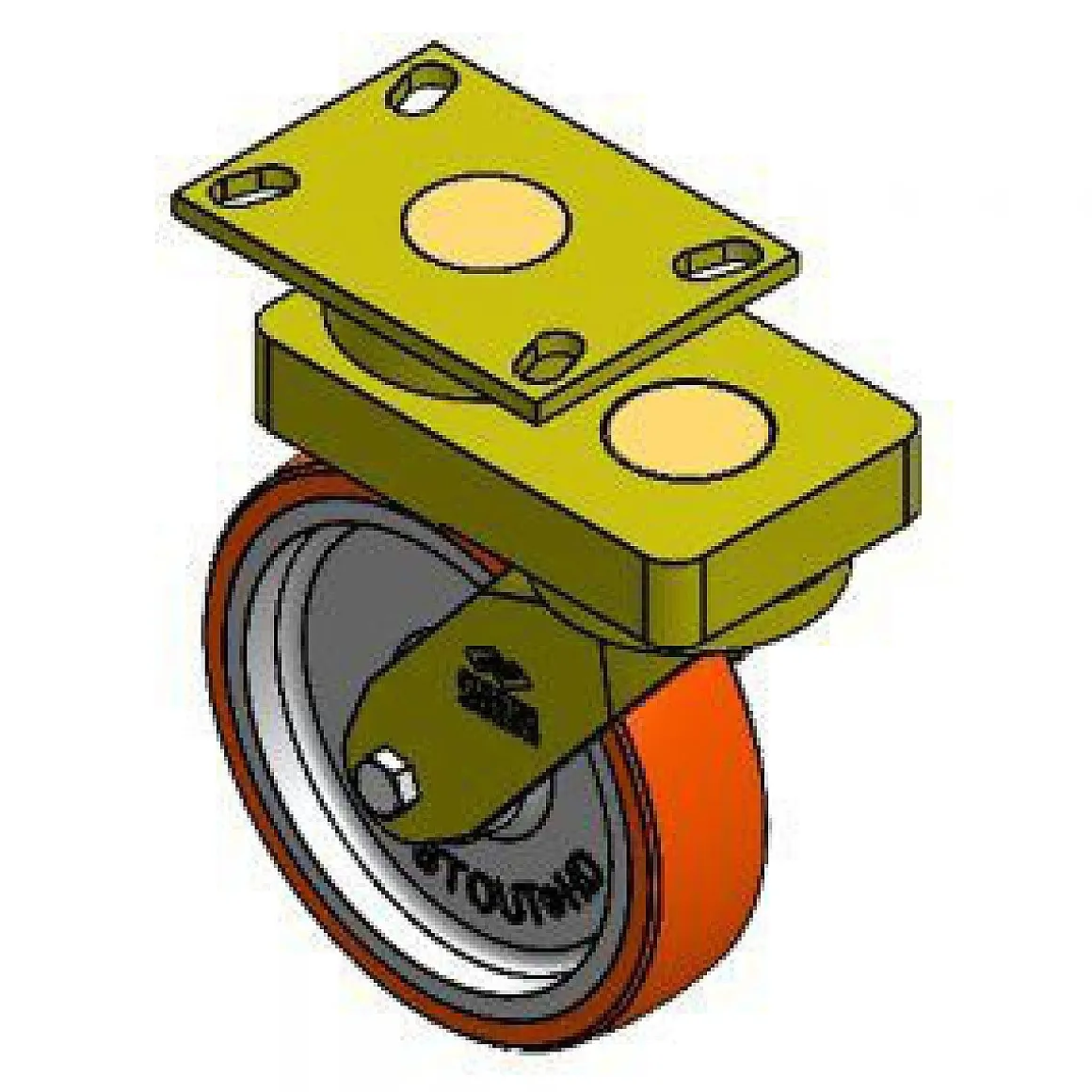

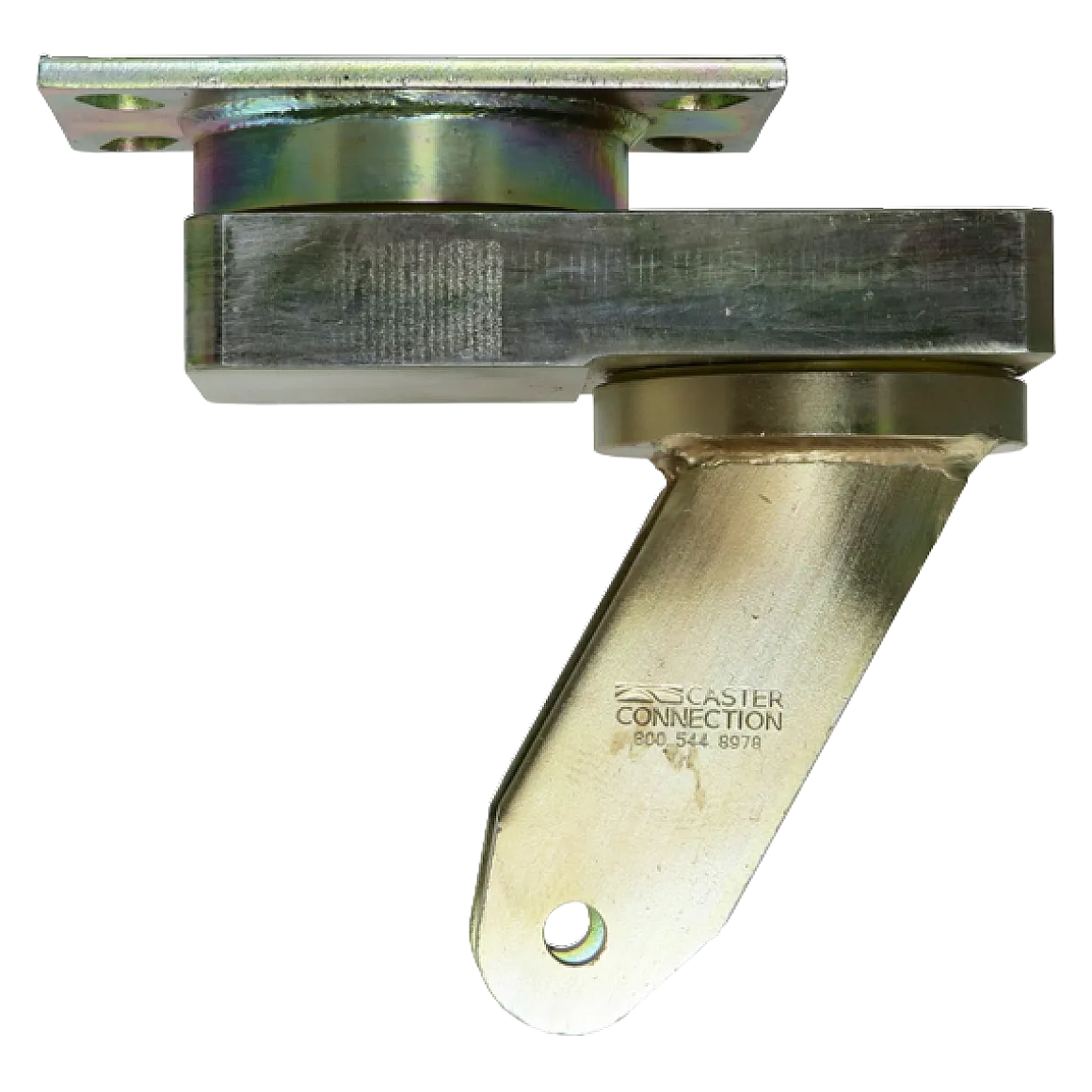

This caster features an 8″ CC Stout wheel with a dual-swivel CC Axis Rig.

When it comes to the 90-degree turned position, your caster wheel and rig allow you to move forward without excessive strain on your back and shoulders. The CC Axis rig does this better than any caster rig on the market because of its dual caster raceways. In addition to this, it is maintenance-free and extremely durable with its forged kingpin raceways, plus robust bearings for higher ROI and less downtime. The CC Axis is truly an ergonomic game changer!

The slightly-crowned tread of the CC Stout HD lessens the effect of the polyurethane because there is less of it. The wheel still repels debris, grips the floor, reduces noise, springs off of the ground, and resists flat-spotting, but it does this less so than the CC Apex with its donut tread.
