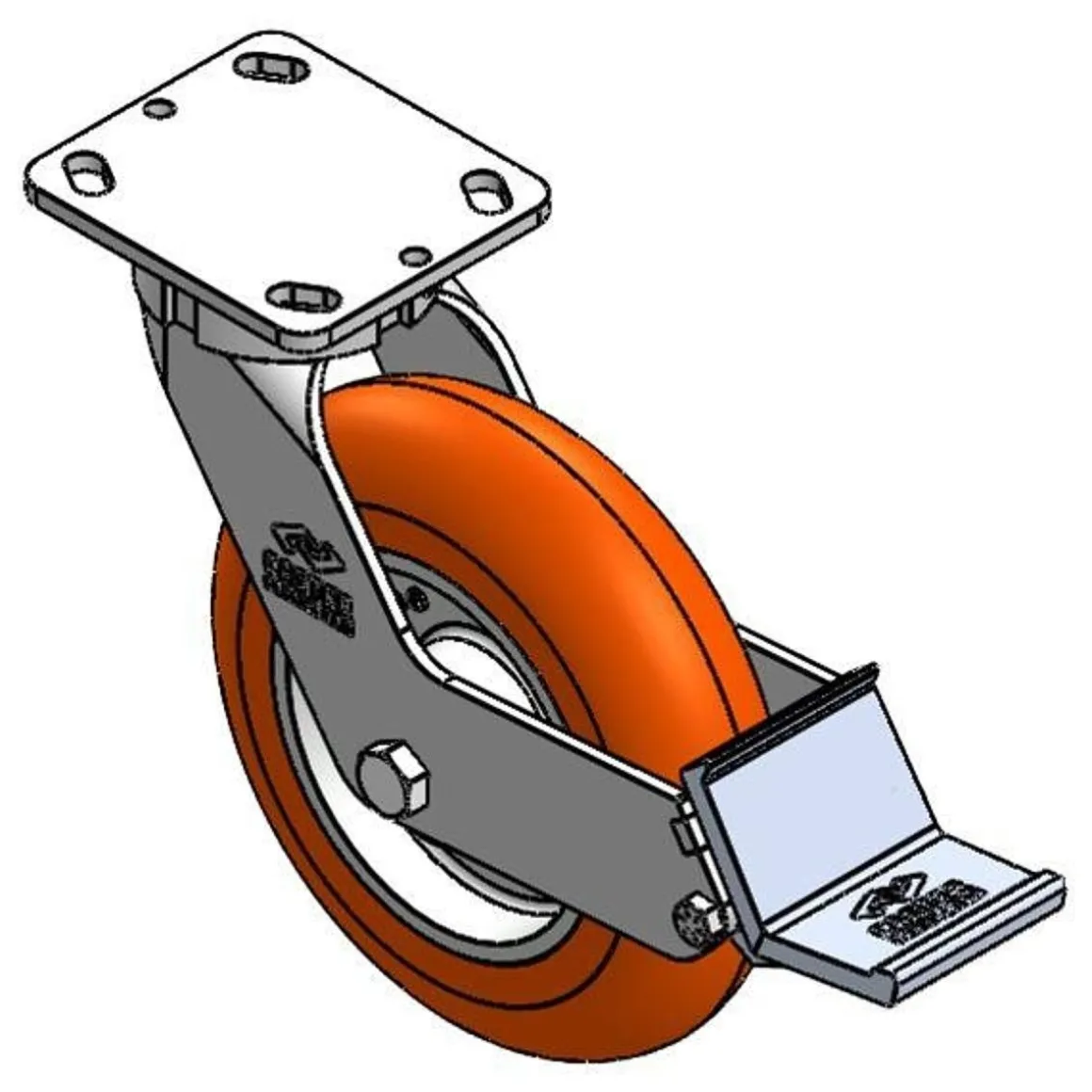

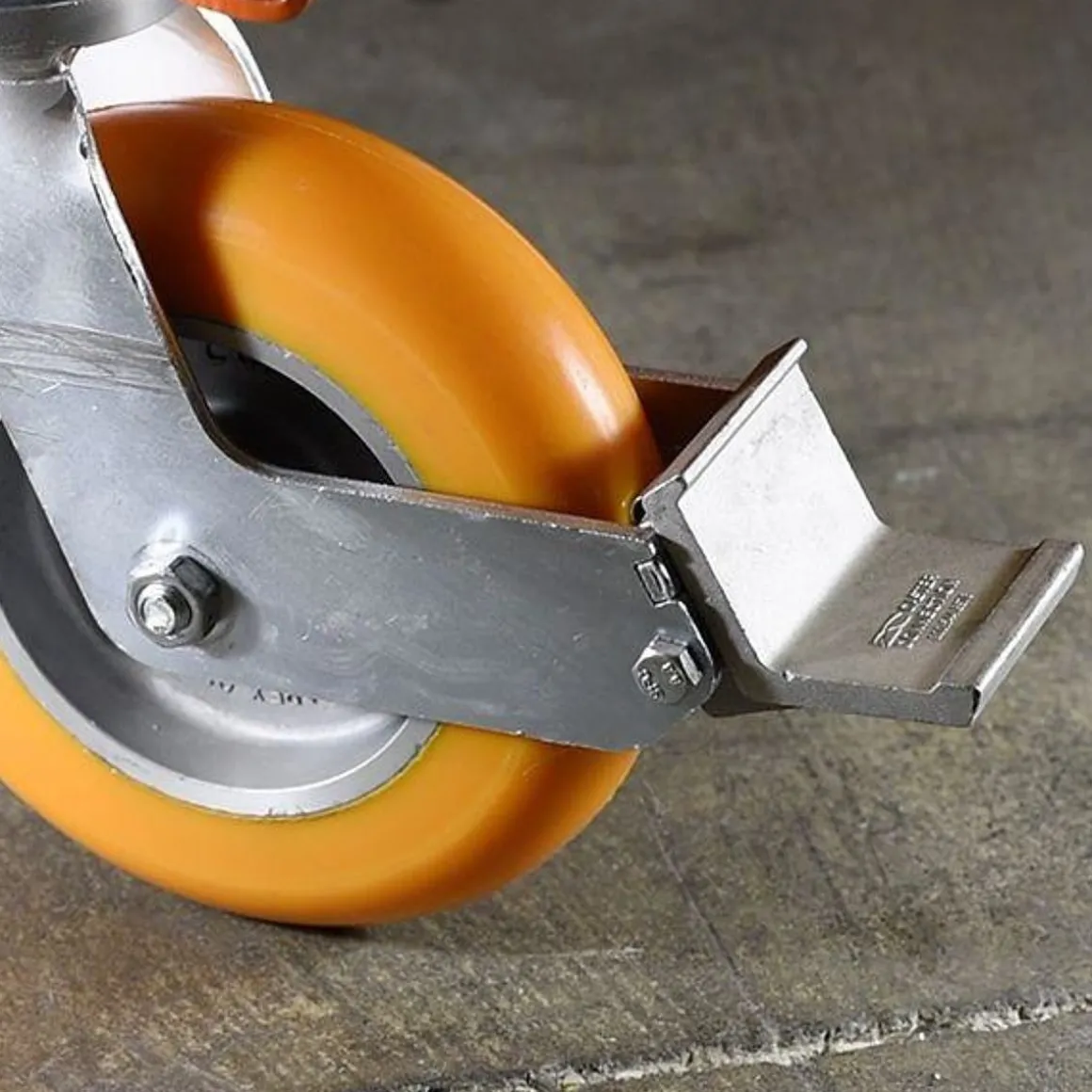

8″ CC Apex Kingpinless Swivel Caster with Extended Swivel Lead and Built in Brake

• Wheel Diameter

  8″

• Wheel Width

  2″

• Overall Height

  9-1/2″

• Weight Capacity

  1,200 lbs.

• Wheel Brand

  CC Apex – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  10-11/16″

• Axle Type

  Solid Axle

• Alternate SKU

  CCAPEX-8S-KP-EXT-BIB, CC-2210-800200-40-T1-BIB

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Steam, Thresholds, Towlines, Water, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  10.23 lbs

You’re viewing caster SKU CC-2210-800200-40-T1-BIB

This 8″ x 2″ orange CC Apex kingpinless swivel caster with extended swivel lead and built-in brake is a great caster choice for those who need a durable, quiet and ergonomic caster that can meet the needs of nearly any environment. CC Apex orange caster wheels feature debris-rejecting high quality polyurethane tread that is chemically and mechanically bonded (for maximum security) to a lightweight-yet-sturdy aluminum core. This caster pairs the CC Apex wheel with a strong, zinc-coated swivel rig from Caster Connection. Every CC Apex wheel comes with a maintenance-free, precision ball bearing for optimal performance in applications that require frequent stops, starts and turns.

CC Apex casters are designed to:

• Prevent user injuries by reducing required push/pull force – and improving ergonomics
• Be strong and durable
• Lessen decibel output when rolling, maintaining a quiet environment
• Preserve flooring by dispelling debris such as weld slag/nails and by being non-marking
• Reduce maintenance downtime due to caster failure
• Carry substantial weight loads

CC Apex casters work well in environments that include:

• Debris
• Fragile Flooring
• Limited Space for Maneuverability
• Low Noise Necessary
• Push/pull Reduction Necessary
• Safety Needs
• Thresholds
• Weld Slag and/or Metal Chips

CC Apex casters have had great success in industries such as:

• Automotive
• Manufacturing
• Metal Fabrication
• Distribution
• DIY
• Engineering
• Hospital/Medical
• Machine Shops

Click here to view the CC Apex Brochure
