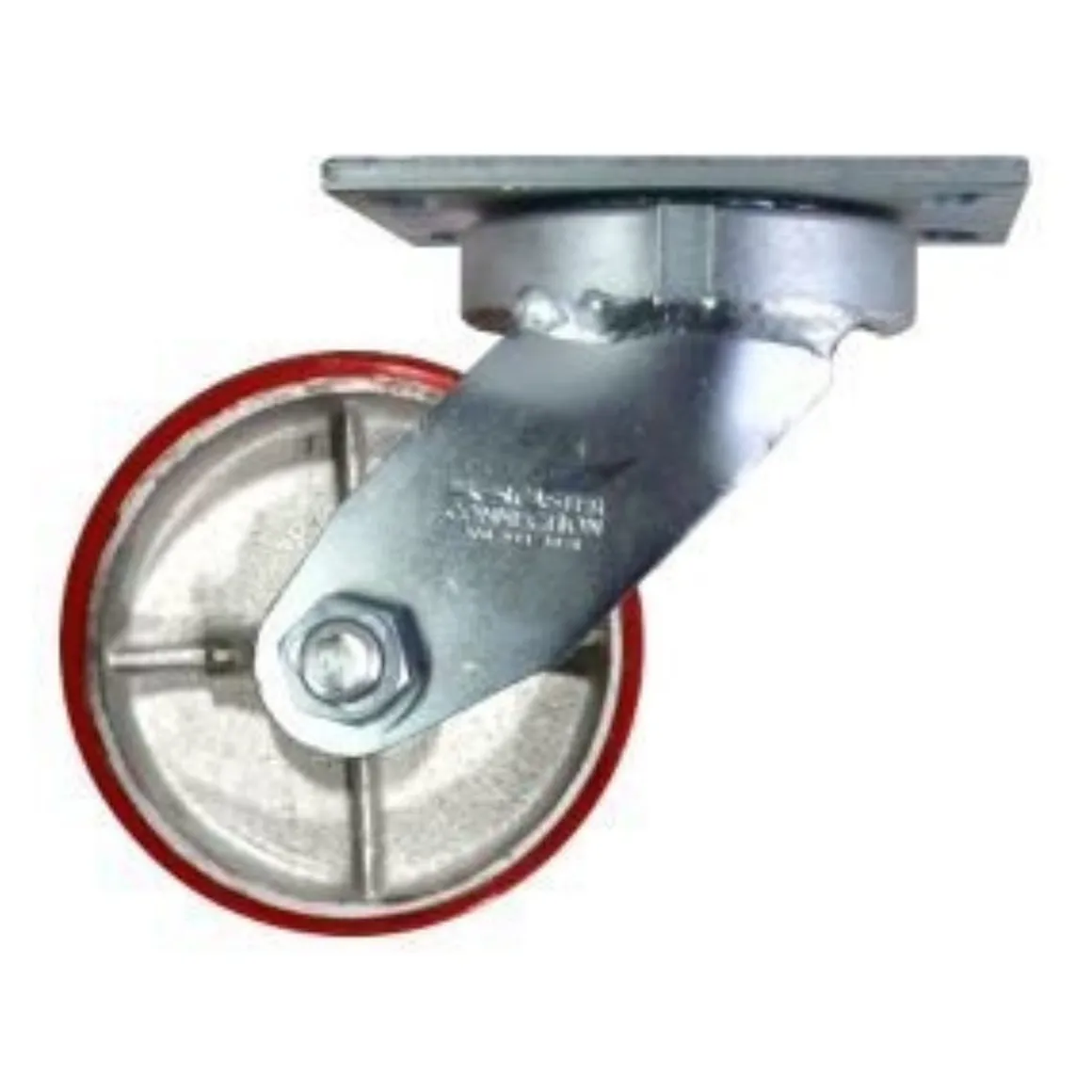

6″ Kingpinless Polyurethane on Cast Iron Swivel Caster

• Wheel Diameter

  6″

• Wheel Width

  1/2″

• Overall Height

  7-1/2″

• Weight Capacity

  2,000 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4.5

• Axle Type

  Zirc Axle

• Durometer

  95 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Floor Type

  Varied-Indoor

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  14.25 lbs

You’re viewing caster SKU CCARMOR-630S-979-7

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
