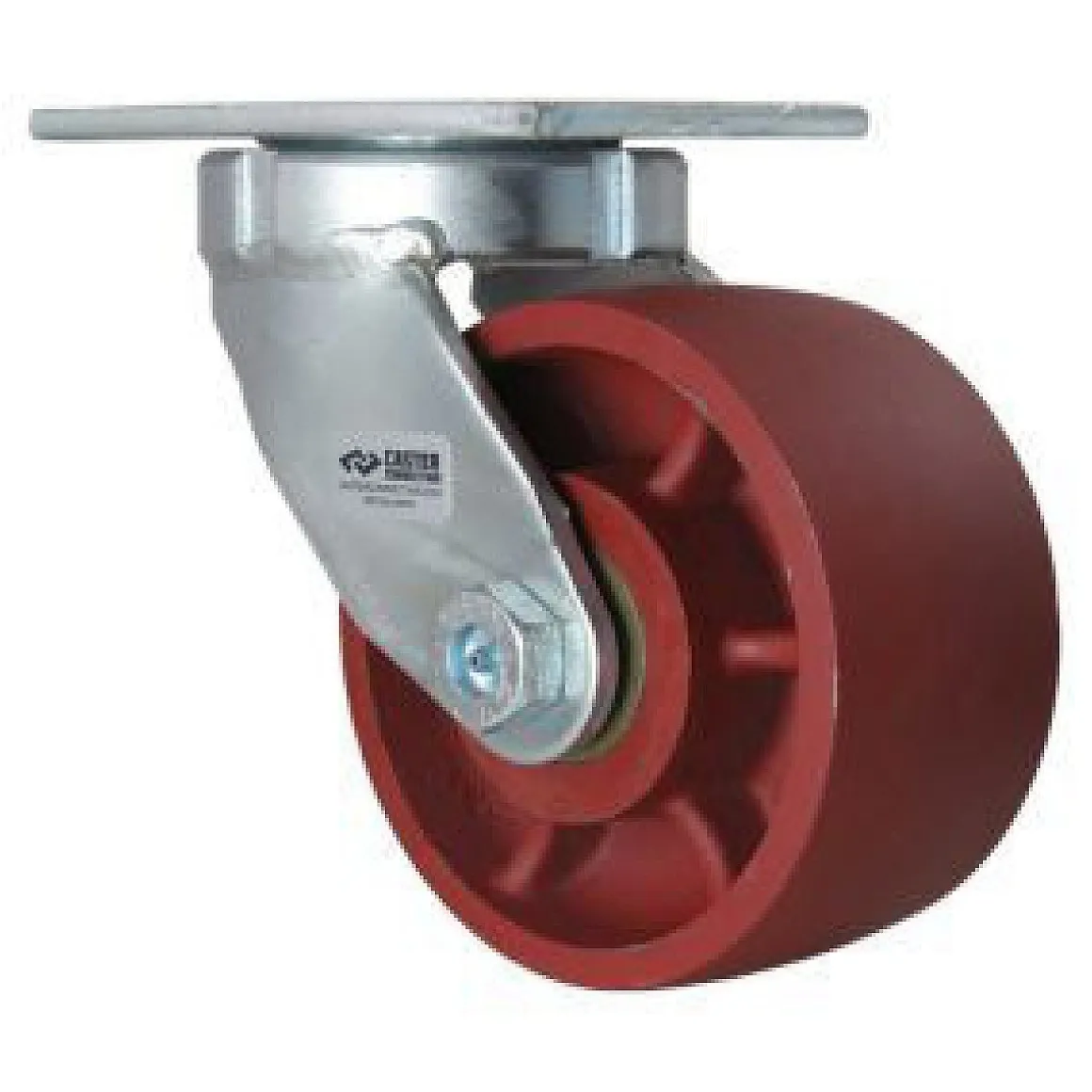

6″ Crown-Tread Ductile Steel Kingpinless Swivel Caster

• Wheel Diameter

  6″

• Wheel Width

  3″

• Overall Height

  7-1/2″

• Weight Capacity

  6,000 lbs.

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Ductile Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  6.0″

• Axle Type

  Zirc Axle

• Alternate SKU

  CD-61CD-600300-30-T2, 630-S-KP-CD

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  22.8 lbs

You’re viewing caster SKU 630-S-KP-CD This product is a 6″ Crown-Tread Ductile Steel Kingpinless Swivel Caster with a weight capacity of 6,000 lbs. per caster.
