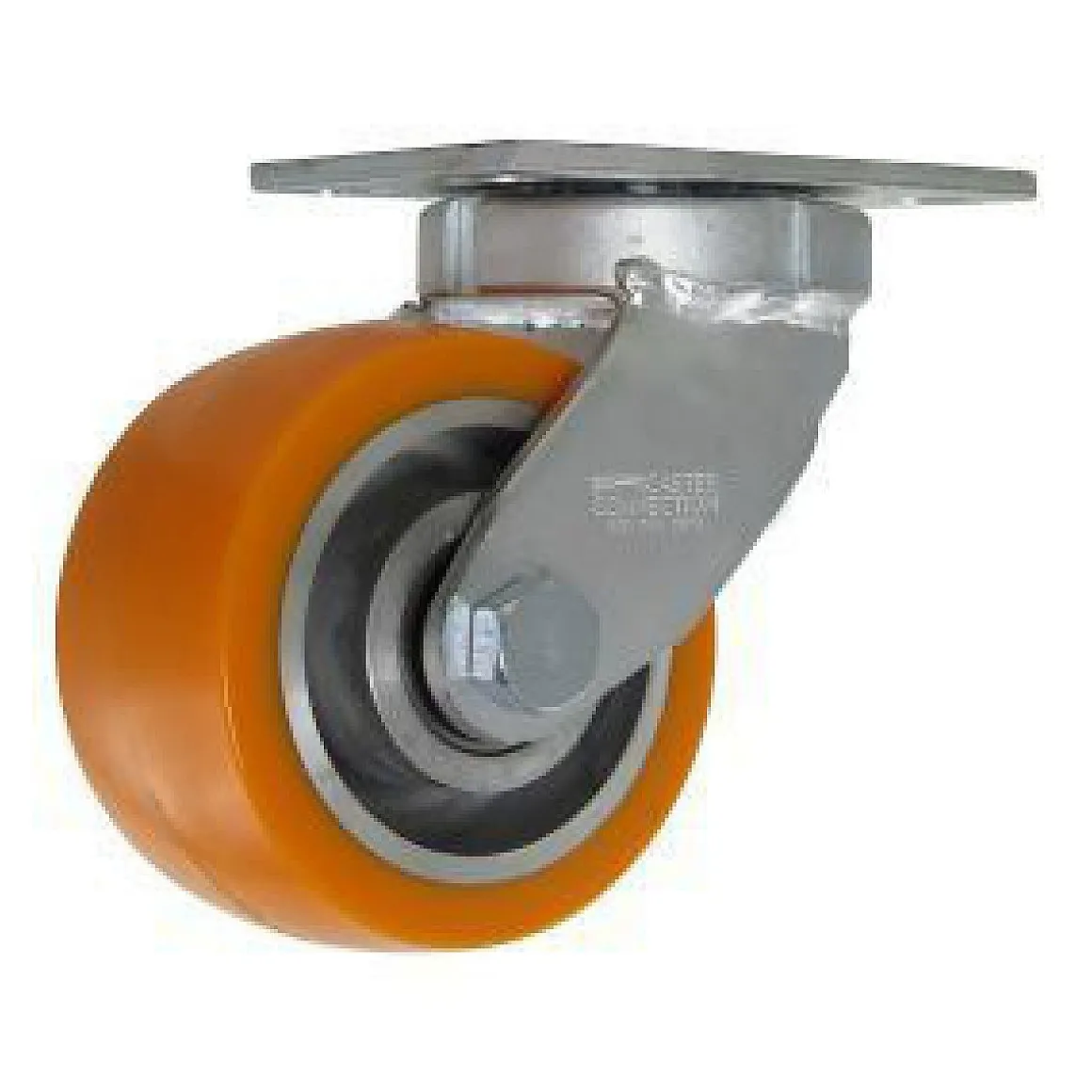

6″ CC Stout Kingpinless Swivel Caster

• Wheel Diameter

  6″

• Wheel Width

  3″

• Overall Height

  8″

• Weight Capacity

  2,000 lbs.

• Wheel Brand

  CC Stout – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6205-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4-3/4″

• Axle Type

  Solid Axle

• Alternate SKU

  DC-6140-600300-40-T7, DC-6140-600300-40-T7

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Towlines, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  13.28 lbs

You’re viewing caster SKU DC-6140-600300-40-T7

This kingpinless caster featuring an 6″ x 3″ orange CC Stout wheel is an elite caster choice for those who need a strong, durable, quiet and incredibly ergonomic caster. Using a slightly-crowned flat-tread design, the CC Stout line offers the same excellent mobility and ergonomics as the industry-changing CC Apex wheel. The CC Stout series utilizes a light-weight heat-dissipating aluminum core for faster-moving applications.

The benefits of the CC Stout include:

• Low Total Cost of Ownership (TCO)
• Improves pushing/pulling ergonomics
• Quiet operation
• Resilient tread protects floors, rejects debris, and assists in rolling
• Aluminum core dissipates heat
• Capable of carrying heavy weight loads

The CC Stout is a great option for applications involving manual pushing and pulling, as well as towing by various vehicles. Because the CC Stout features the same polyurethane as the CC Apex, it offers an added boost to pushing and pulling and maintains a great grip on flooring during towing.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
