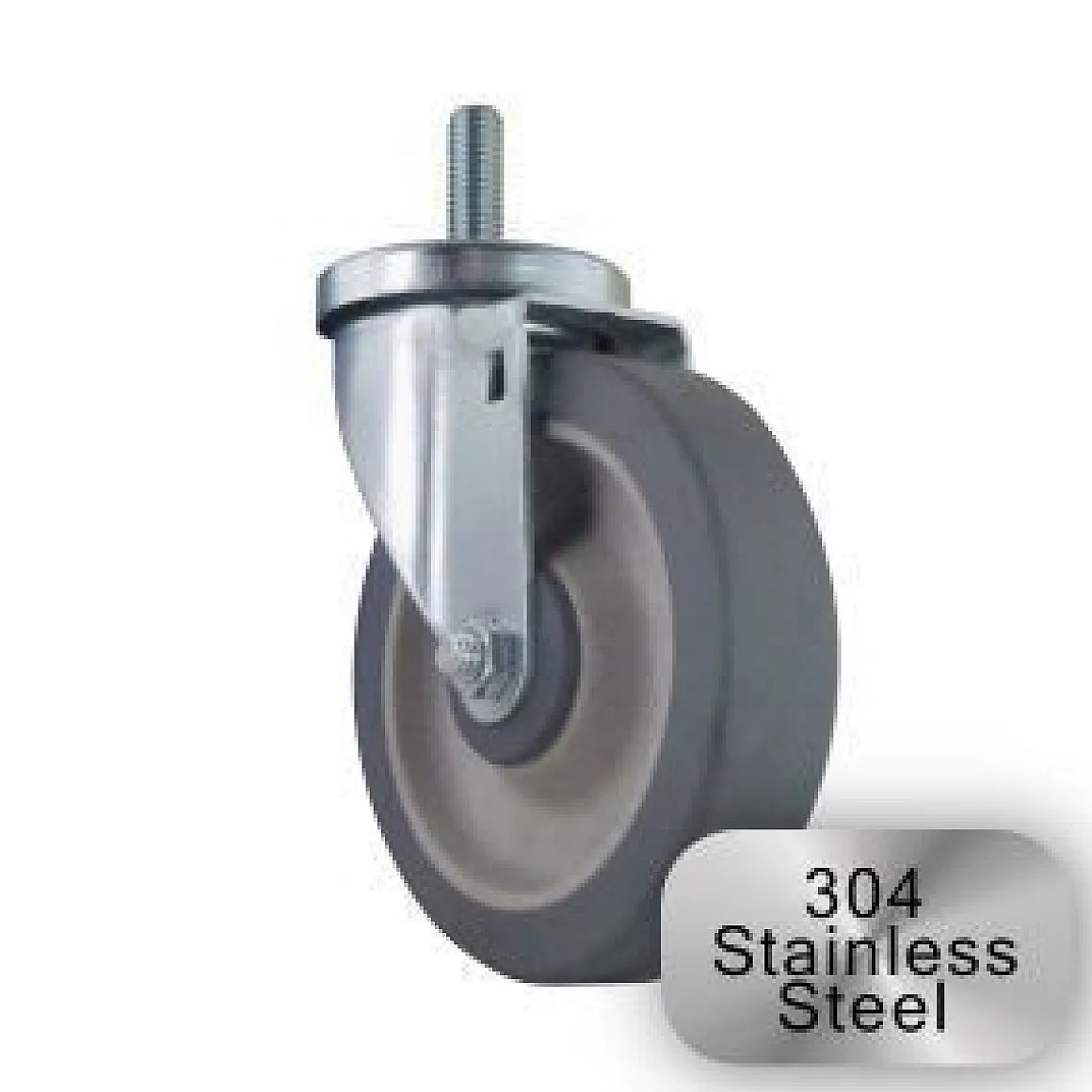

5″ Stainless Steel Thermoplastic Rubber Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  1-1/4″

• Overall Height

  6″

• Weight Capacity

  300 lbs.

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Ball Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Stem

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4

• Durometer

  75 Shore A (+/- 5)

• Fork Finish

  Stainless Steel

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Environment

  Animal Fats, Extreme Cold, Mild Chemicals, Oil & Grease, Water

• Industry

  Bakeries, Dairy, Food Manufacturing, Laundries, Manufacturing, Meat Processing, Supermarkets, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Thread Pitch

  No

• Stem Length

  No

• Stem Type

  Threaded

• Stem Diameter

  1/2″

• Ship Weight

  1.35 lbs

You’re viewing caster SKU 5-S36-314GF-THREADED-STEM-1/2

This 5″ x 1-1/4″ Stainless Steel Thermoplastic Rubber Swivel Caster (TPR) features a shock-absorbing cushioned ride, while providing good floor protection and quiet rolling operation. Featuring weight capacities of 75 to 1100 pounds per wheel, the 75 Shore A TPR wheel tread is chemically bonded to a polyolefin core and has an operating temperature range of -40°to +180° Fahrenheit. It is resistant to cleaning chemicals, acids, alcohol, and water, TPR wheels are an excellent choice for wash-down applications.

For more info, check out Caster Wheel Types.
