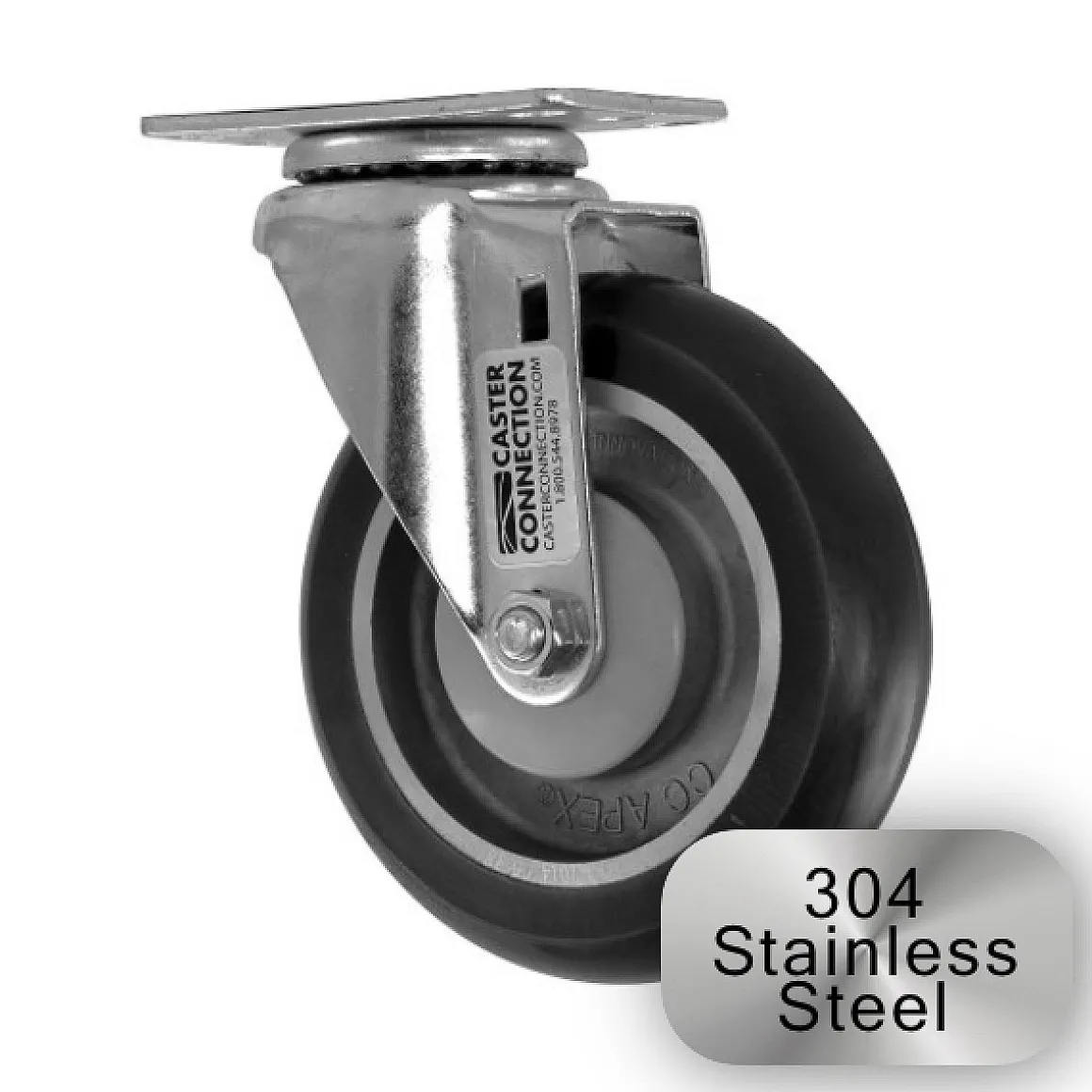

5″ Stainless Steel CC Apex Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  1-1/4″

• Overall Height

  6-3/16″

• Weight Capacity

  450 lbs.

• Wheel Brand

  CC Apex – Caster Connection

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3-7/8″

• Axle Type

  Zirc Axle

• Alternate SKU

  CCAPEX-525SS-S-G, DC-7312-500125-41-T4

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Stainless Steel

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Steam, Thresholds, Towlines, Water, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Ship Weight

  2.52 lbs

You’re viewing caster SKU GC-0512-500125-41-T4

This 5″ x 1-1/4″ Stainless Steel CC Apex Swivel Caster is a great caster choice for those who need a durable, quiet and ergonomic caster. CC Apex 1-1/4″ wide caster wheels feature a high quality polyurethane tread that stores and exudes energy to help boost ergonomic performance and reduce vibrations of carts and equipment, offering a smooth and quiet ride that make it ideal for medical environments. The CC Apex’s durable polyurethane tread also features a debris-rejecting quality, meaning the wheel doesn’t damage or mark floors, helping to lower time spent on floor upkeep. Each CC Apex also comes standard with a sealed precision ball bearing that holds up under frequent stops and starts and aids in precise maneuverability.
