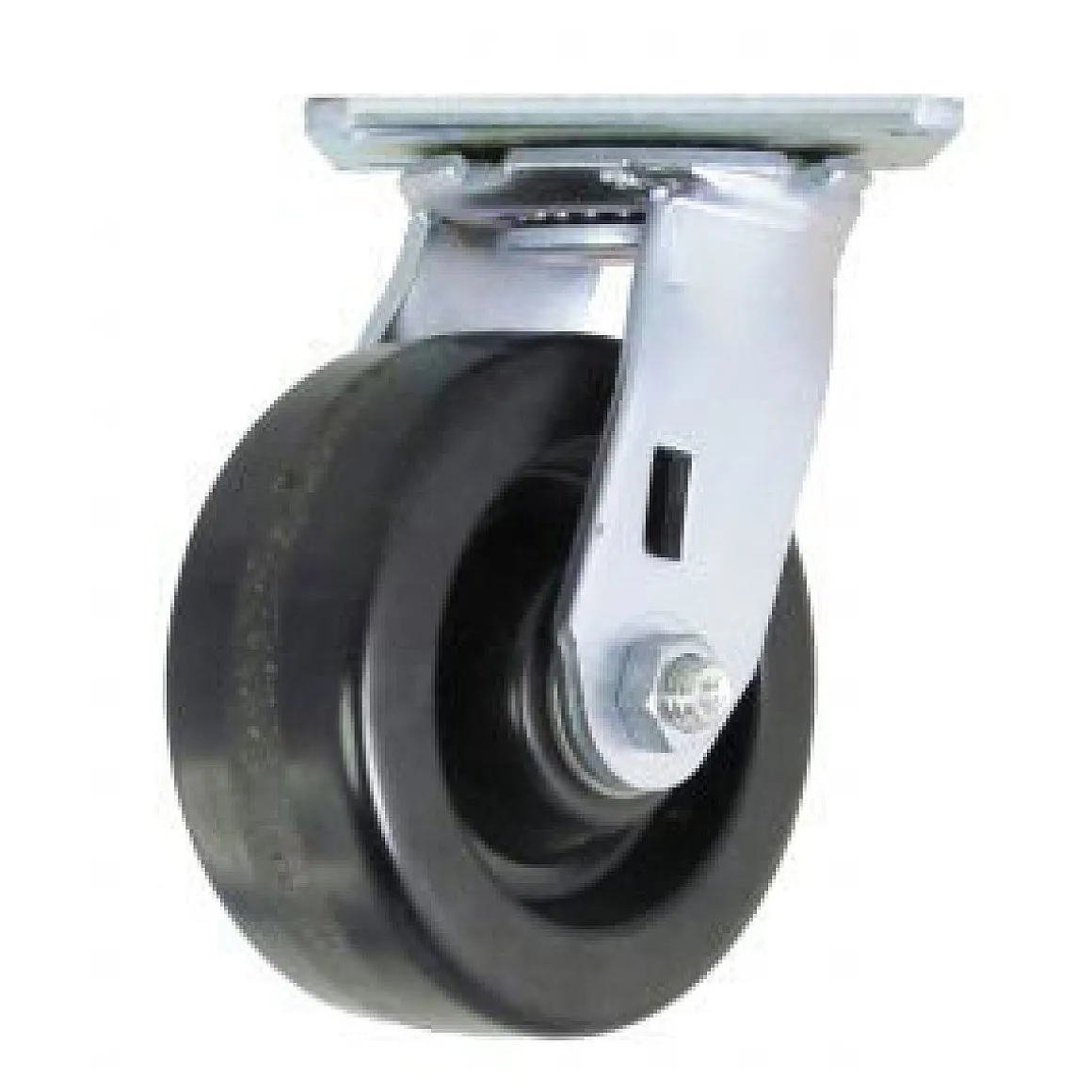

5″ Phenolic Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,000 lbs.

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Phenolic

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4

• Axle Type

  Zirc Axle

• Durometer

  90 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +250 F

• Application

  Manual Push/Pull

• Environment

  Indoor

• Floor Type

  Indoor

• Industry

  Scaffolds, Warehouse

• Noise Reduction

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  4.8 lbs

You’re viewing caster SKU 5-81-339

This 5″ x 2″ Phenolic Swivel Casteroffers high weight capacities, and easy roll ability on clean, debris-free floors. Featuring weight capacities of 300 to 8,000 pounds per wheel, the 90 Shore D wheel is made from phenolic resin mixed with macerated canvas and has an operating temperature range of -50° F to +250° F. While resistant to oil, grease, and solvents, phenolic wheels become sponges to liquids when they are chipped or damaged, so this wheel is not recommended for applications which operate where water is present.

For more info, check out Caster Wheel Types.
