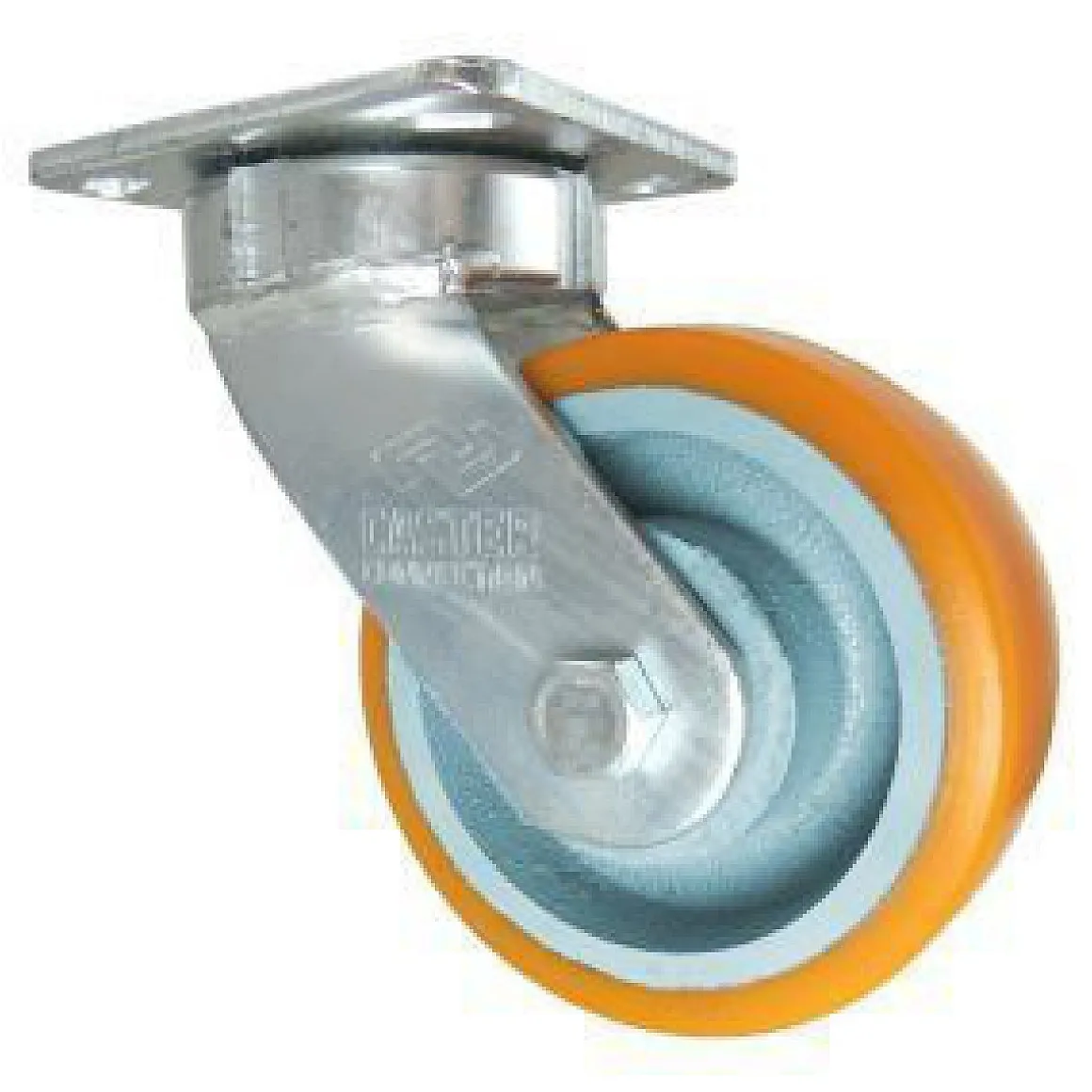

5″ CC Stout HD Kingpinless Swivel Caster w/ Extended Swivel Lead

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,050 lbs.

• Wheel Brand

  CC Stout HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ X 4-1/4″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  5″

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Dust Cap

  No

• Ship Weight

  8.43 lbs

You’re viewing caster SKU CC-2250-500200-40-T1

This 5″ x 2″ CC Stout Kingpinless Extended-Lead Swivel Caster is an excellent caster for those who need to carry heavy weight loads with great ergonomic ease while also capably rejecting debris and reducing downtime due to failed casters, damaged flooring or injured employees. CC Stout caster wheels function so incredibly well during pushing and pulling because they feature the orange polyurethane tread of the industry-standard CC Apex, chemically bonded to a stout iron core. All CC Stout wheels include a maintenance-free, sealed precision ball bearing for peak performance in applications that entail frequent halts, jolts and jerks.

This particular caster combines the CC Stout wheel with Caster Connections zinc-coated CC Alpha kingpinless-swivel rig. This rig lugs substantial weight loads, performs superbly in Towlines and offers great durability because of its lack of a kingpin. This caster’s extended-lead provides even greater push-pull performance than traditional lead rigs.

CC Stout kingpinless casters provide the following benefits:

¢ High weight capacity
¢ Low push/pull force necessary for movement
¢ Ergonomic and easily controllable
¢ Debris dispersing capability
¢ Holds up under rigorous conditions
¢ Reduces downtime and repair costs
¢ Painted iron core to protect structural integrity
¢ Orange wheel tread for great visibility

CC Stout kingpinless casters work well in environments that include:

¢ Debris
¢ Delicate Flooring
¢ Restricted Space for Maneuverability
¢ Low Noise Necessary
¢ Push-Pull Reduction Necessary
¢ Safety Needs
¢ Thresholds
¢ Weld Slag, Nails and/or Metal Chips

CC Stout kingpinless casters are a great choice for industries such as:

¢ Automotive
¢ Manufacturing
¢ Metal Fabrication
¢ Distribution
¢ DIY
¢ Engineering
¢ Machine Shops
