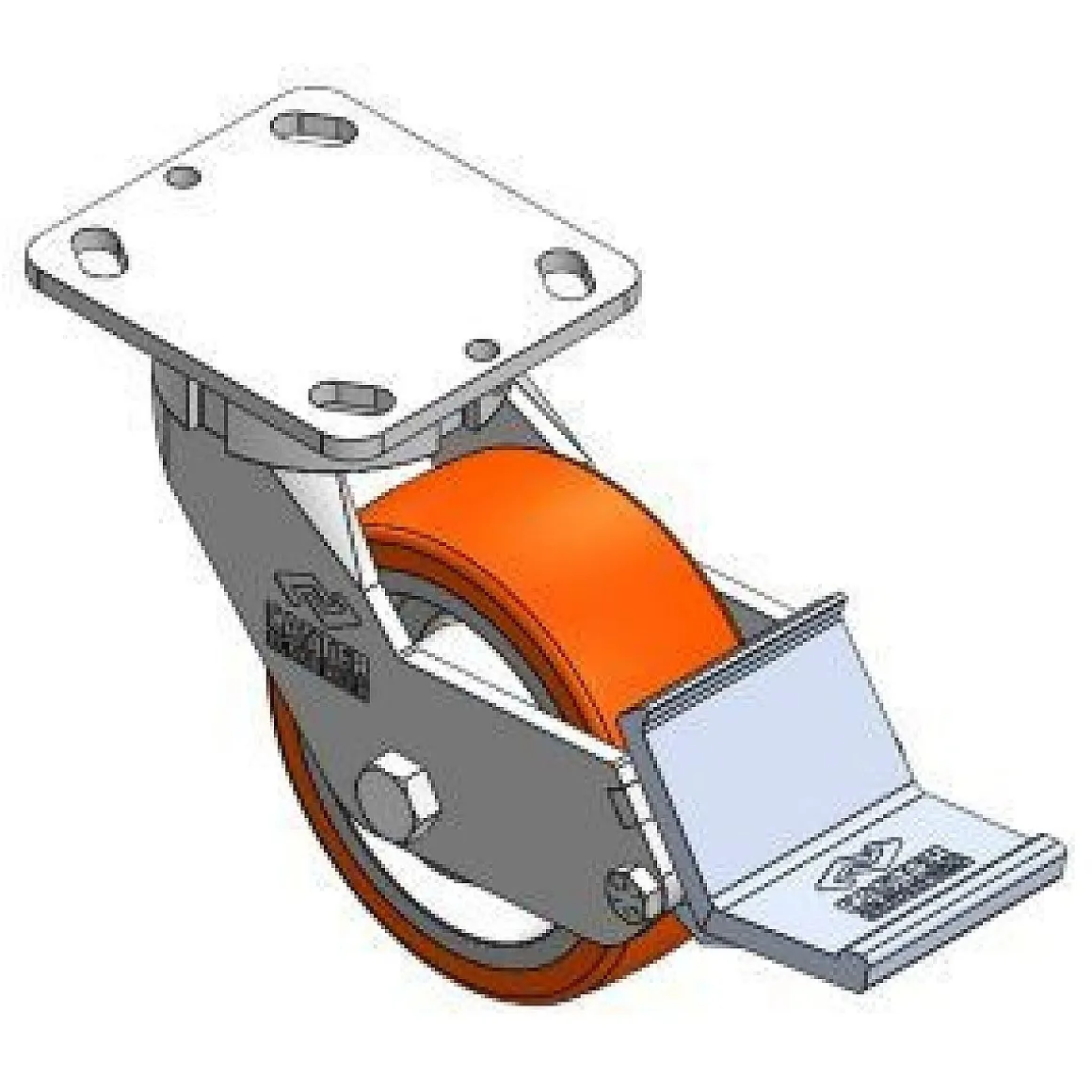

5″ CC Stout HD Kingpinless Swivel Caster w/ Extended Swivel Lead and Built in Brake

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,050 lbs.

• Wheel Brand

  CC Stout HD – Caster Connection

• Color

  Orange

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  8-3/8″

• Axle Type

  Solid Axle

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Thresholds, Towlines, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  10.1 lbs

You’re viewing caster SKU CC-2250-500200-40-T1-BIB

The 5″ x 2″ CC Stout HD kingpinless swivel caster with extended swivel lead and built-in brake has the same polyurethane as the CC Apex and CC Stout but has the slightly-crowned tread like the CC Stout. Because of this, you still have some of the benefits of this polyurethane mix (over harder wheels), which gives you higher noise reduction, grip/maneuverability, and an opportunity for the rebound resilience to work.

There are important differences between the CC Stout HD and the CC Apex. With the CC Stout HD, you arent able to utilize the donut tread of the CC Apex for debris and noise. The iron core normally becomes less aesthetically pleasing than aluminum through the life of the caster as well. Both of these casters give you options, so make your selection based on your needs.

• Same polyurethane as the CC Apex
• Great for towlines and manual applications
• Heavier weight loads
• Cast iron core
