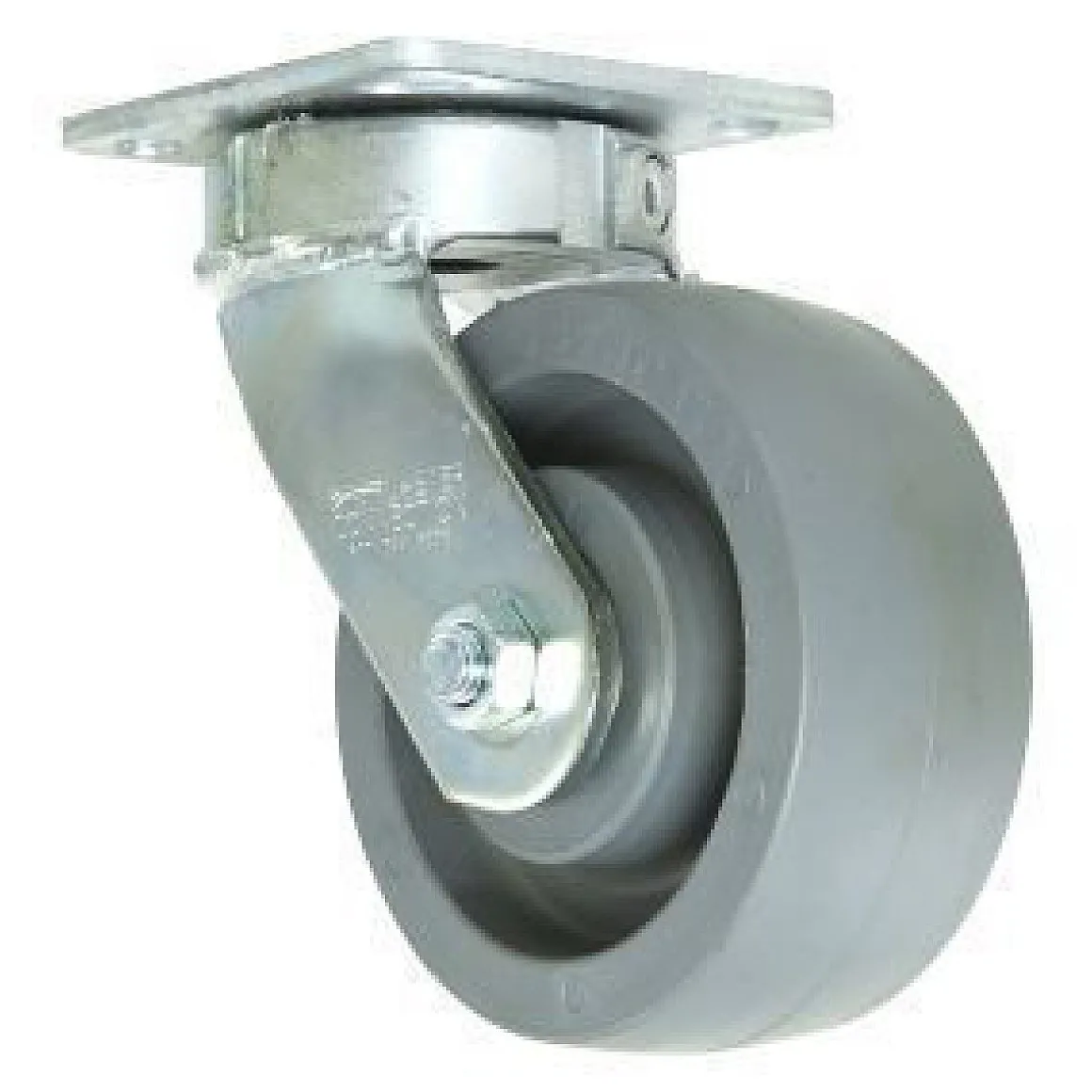

5″ CC Nylex Kingpinless Swivel Caster with Extended Swivel Lead

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,250 lbs.

• Wheel Brand

  CC Nylex – Caster Connection

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Nylon

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Nylon

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ X 4-1/4″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  5″

• Axle Type

  Solid Axle

• Durometer

  74 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +225 F

• Application

  Manual Push/Pull, Ergonomic Concerns

• Environment

  Clean, Indoor, Limited Space for Maneuverability, Safety Necessary, Steam, Push/Pull Reduction, Safety, Chemicals Present

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Automotive, Biotechnology, Food Manufacturing, Healthcare, Industrial/Mechanical Engineering, Manufacturing, Material Handling, Technology, Utilities, Electrical/Electronic manufacturing

• Noise Reduction

  No

• Dust Cap

  No

• Ship Weight

  5.64 lbs

You’re viewing caster SKU CC-2230-500200-40-T1

The 5″ x 2″ CC Nylex wheel and CC Alpha kingpinless swivel caster rig is a great choice for easily moving and carrying very heavy weight loads. Providing impact absorption and sheer strength components without breakdown, the CC Nylex has an outstanding ability to roll with ease. Its slight crown and hard tread design grant users boundless mobility and performs almost exclusively maintenance-free.

The benefits of the CC Nylex include:

• Ability to handle heavy weight loads without breakdown
• Impressive impact absorption
• Low push-pull force required for movement
• Smooth maneuverability with little to no interruption
• Resistance to organic diluters, including most cleaning & chemical solutions
