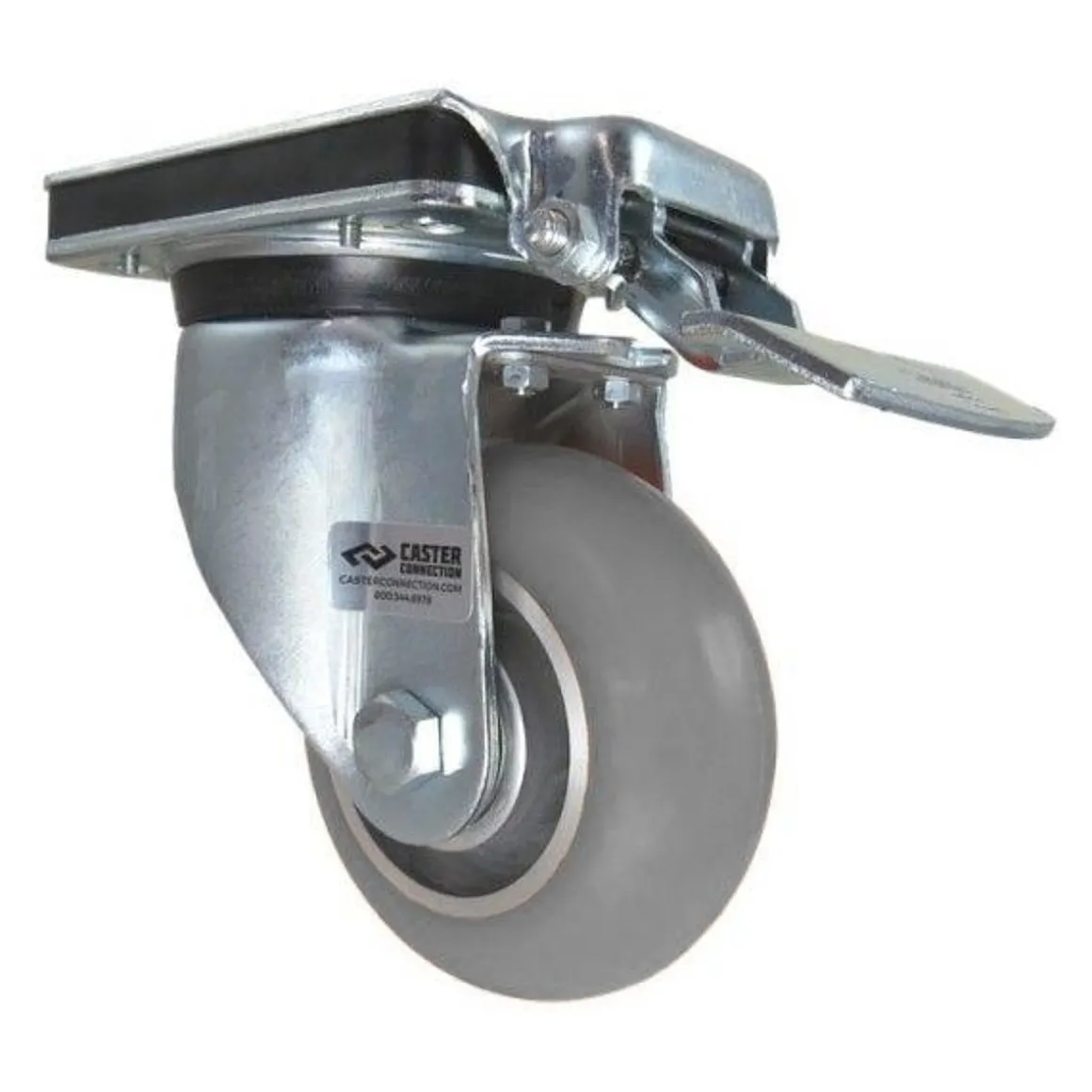

5″ CC Apex Swivel Caster w/ Ideal-Stop Brake

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  7-3/8″

• Weight Capacity

  800 lbs.

• Wheel Brand

  CC Apex – Caster Connection

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Donut Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6203-RS Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  140 mm x 110 mm

• Top Plate Bolt Hole Pattern

  105 mm x 75-80 mm

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  6-9/50″

• Axle Type

  Solid Axle

• Alternate SKU

  CCAPEX-G-5S-IS-TP7-OH4, BC-2412-500200-40-M1-B7

• Durometer

  87 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Debris, Floor Protection, Safety, Ergonomic Concerns

• Environment

  Clean, Debris, Delicate Flooring, Indoor, Limited Space for Maneuverability, Low Noise Necessary, Medical, Outdoor, Safety Necessary, Steam, Thresholds, Towlines, Water, Weld Slag and/or Metal Chips, Metal Chips, Push/Pull Reduction, Safety

• Floor Type

  Varied-Indoor

• Industry

  Aerospace, Agriculture, Automotive, Engineering, Manufacturing, Material Handling, Metal Fabrication, Industrial/Mechanical, Machinery

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Ship Weight

  7.96 lbs

You’re viewing caster SKU BC-2412-500200-40-M1-B7

This 5″ x 2″ gray CC Apex swivel caster with Ideal-Stop Brake is a great caster choice for those who need a durable, quiet and ergonomic caster that can meet the needs of nearly any environment. CC Apex caster wheels feature debris-rejecting high quality polyurethane tread that is chemically and mechanically bonded (for maximum security) to a lightweight-yet-sturdy aluminum core. This caster pairs the CC Apex wheel with a strong, zinc-coated swivel fork with a built-in braking mechanism from Caster Connection. Every CC Apex wheel comes with a maintenance-free, precision ball bearing for optimal performance in applications that require frequent stops, starts and turns.

CC Apex casters are designed to:

¢ Prevent user injuries by reducing required push/pull force – and improving ergonomics
¢ Be strong and durable
¢ Lessen decibel output when rolling, maintaining a quiet environment
¢ Preserve flooring by dispelling debris such as weld slag/nails and by being non-marking
¢ Reduce maintenance downtime due to caster failure
¢ Carry substantial weight loads

CC Apex casters work well in environments that include:

¢ Debris
¢ Fragile Flooring
¢ Limited Space for Maneuverability
¢ Low Noise Necessary
¢ Push-Pull Reduction Necessary
¢ Safety Needs
¢ Thresholds
¢ Weld Slag and/or Metal Chips

CC Apex casters have had great success in industries such as:

¢ Automotive
¢ Manufacturing
¢ Metal Fabrication
¢ Distribution
¢ DIY
¢ Engineering
¢ Hospital/Medical
¢ Machine Shops
