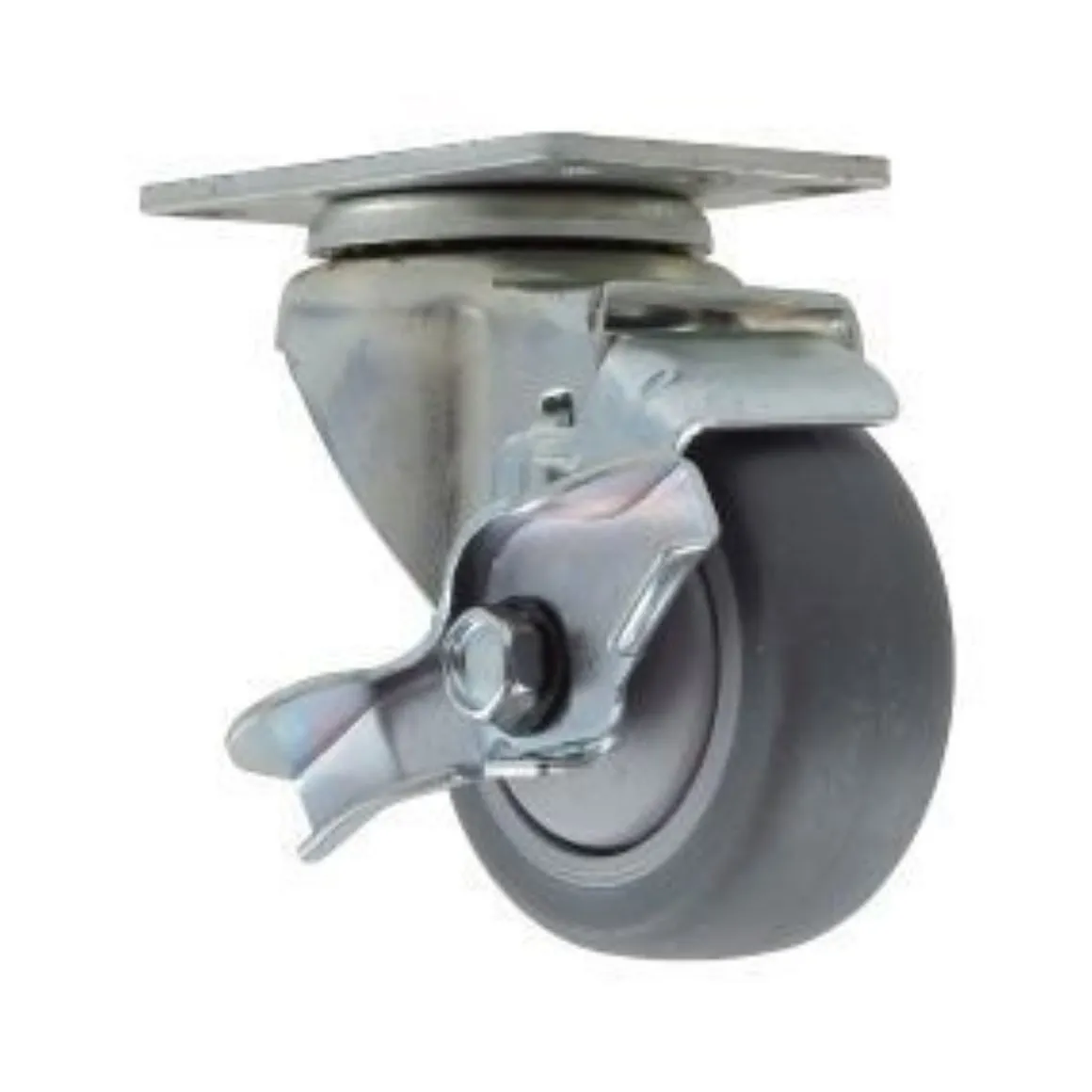

3″ Polyurethane Swivel Caster w/ Brake

• Wheel Diameter

  3″

• Wheel Width

  1-1/4″

• Overall Height

  4-1/8″

• Weight Capacity

  250 lbs.

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 2-7/8″ slotted to 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3″

• Axle Type

  Solid Axle

• Durometer

  60 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  1.3 lbs

You’re viewing caster SKU 3-13-213G-VB-2 This product is a 3″ Polyurethane Swivel Caster w/ Brake with a weight capacity of 250 lbs. per caster. This product has an overall height of 4-1/8″. Product specs (including lead time) can be found on the Specifications tab of this page.
