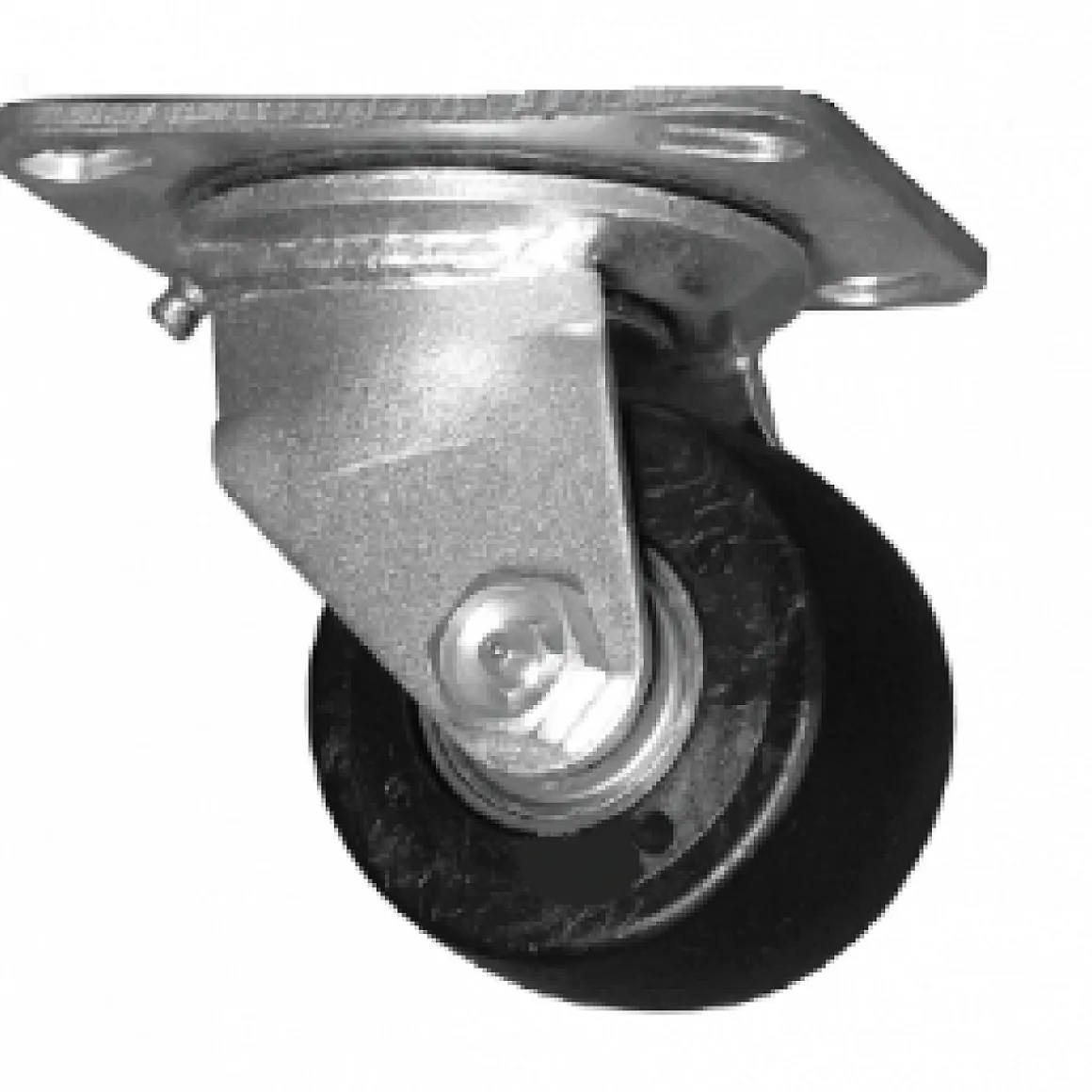

3″ Data Cabinet and Server Rack Swivel Caster

• Wheel Diameter

  3″

• Wheel Width

  1-3/4″

• Overall Height

  4-1/8″

• Weight Capacity

  1,000 lbs.

• Wheel Brand

  Durable

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Glass-Filled Nylon

• Bearing Type

  Ball Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  2.5

• Axle Type

  Solid Axle

• Durometer

  85 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to 350 F

• Application

  Manual Push/Pull, Business Machine

• Environment

  Indoor, Varied

• Industry

  Bakeries, Design, Distribution, DIY, Supermarkets, Warehouse, Waste Management

• Noise Reduction

  No

• Related Products

  06MA30IB6317YY

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.21 lbs

You’re viewing caster SKU 05MA30IB6317YY

This 3″ x 1-3/4″ Glass-Filled Nylon Swivel Caster offers the same weight capacity as a steel wheel but is dramatically lighter and wont rust. They have an operating temperature of -45° to +350° Fahrenheit. Glass filled nylon wheels have good abrasion and compression resistance and they wont flat spot.

This low-profile caster is a great option for server racks and cabinets because of its 1,000 lb. weight capacity.

For more info, check out Caster Wheel Types.
