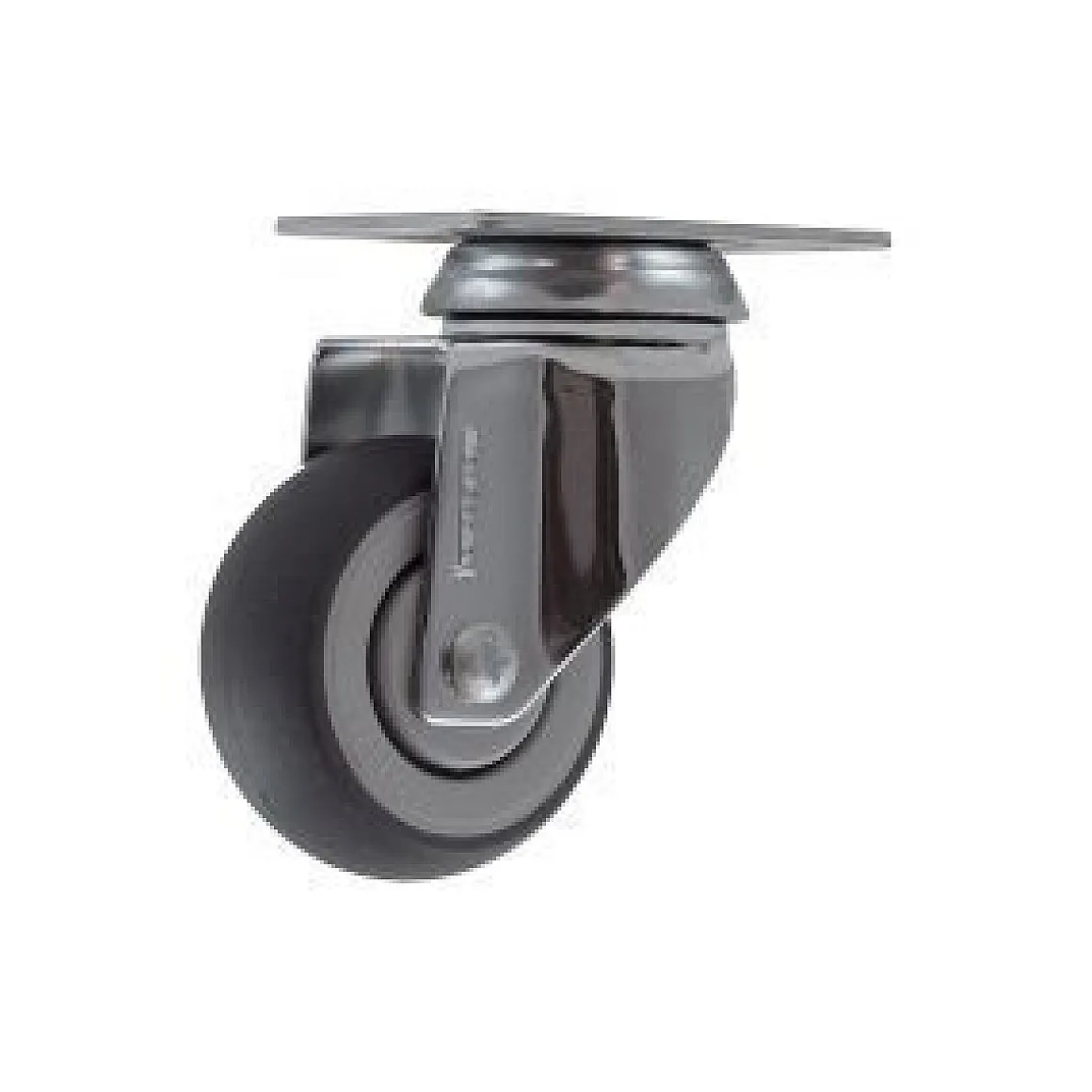

3″ Chrome-Plated Thermoplastic Rubber Swivel Caster

• Wheel Diameter

  3″

• Wheel Width

  1-1/4″

• Overall Height

  4.4375

• Weight Capacity

  200 lbs.

• Wheel Brand

  Medcaster

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Ball Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  2-3 Weeks

• Swivel Radius

  3″

• Axle Type

  Solid Axle

• Durometer

  75 Shore A (+/- 5)

• Fork Finish

  Chrome Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Environment

  Delicate Flooring, Indoor, Low Noise Necessary, Medical, Thresholds

• Floor Type

  Varied-Indoor

• Industry

  Healthcare, Hotels, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  1.27 lbs

You’re viewing caster SKU CH-03TPP-125-SW-TP01

This 3″ x 1-1/4″ Chrome-Plated Thermoplastic Rubber Swivel Caster (TPR) features a shock-absorbing cushioned ride, while providing good floor protection and quiet rolling operation. Featuring weight capacities of 75 to 1100 pounds per wheel, the 75 Shore A TPR wheel tread is chemically bonded to a polyolefin core and has an operating temperature range of -40°to +180° Fahrenheit. It is resistant to cleaning chemicals, acids, alcohol, and water, TPR wheels are an excellent choice for wash-down applications.

For more info, check out Caster Wheel Types.
