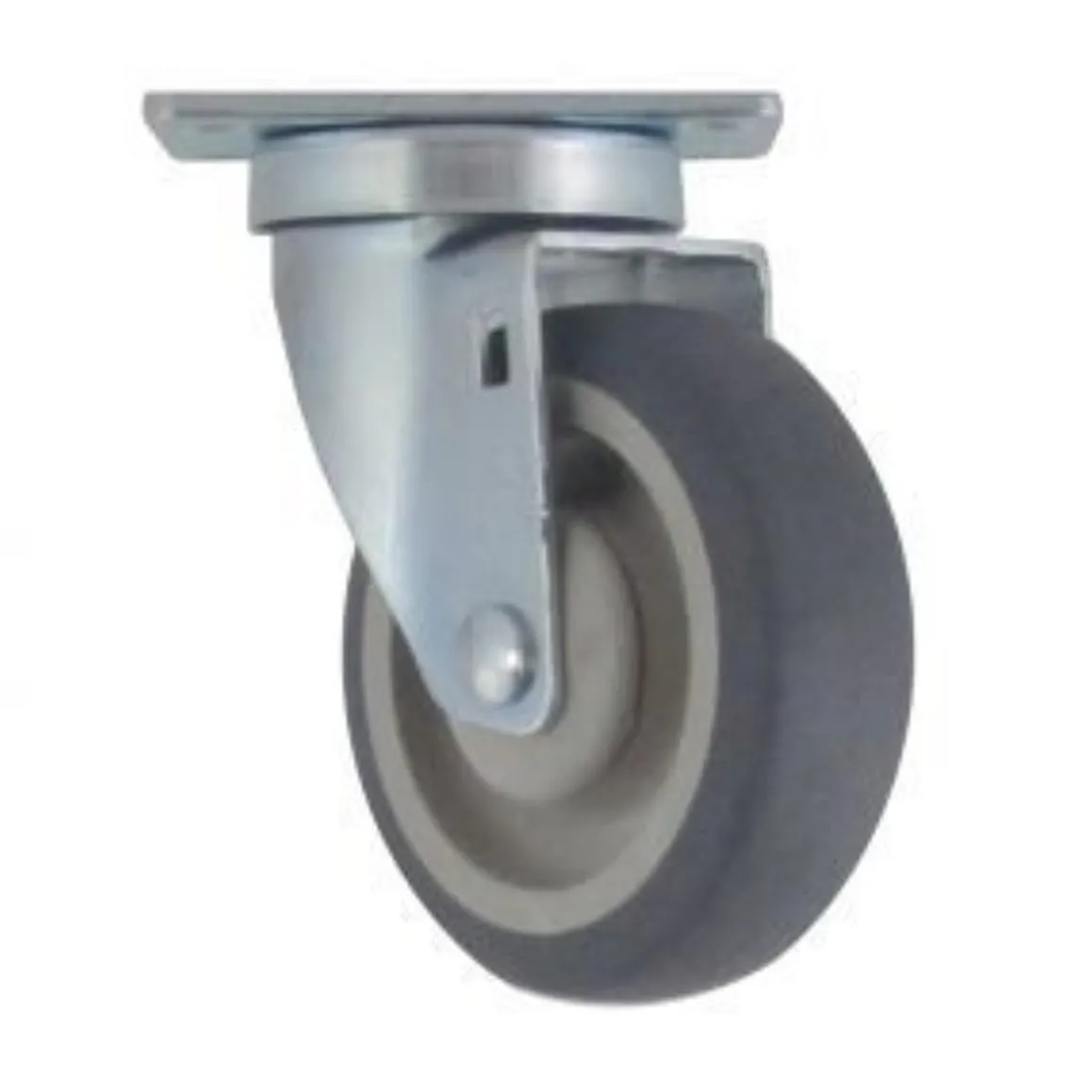

3-1/2″ Thermoplastic Rubber Swivel Caster

• Wheel Diameter

  3-1/2″

• Wheel Width

  1-1/4″

• Overall Height

  4-5/8″

• Weight Capacity

  250 lbs.

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Thermoplastic Rubber

• Core Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3.125

• Axle Type

  Solid Axle

• Durometer

  75 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  1.95 lbs

You’re viewing caster SKU 3-1/2-30-213GF-2

This 3-1/2″ x 1-1/4″ Thermoplastic Rubber Swivel Caster (TPR) features a shock-absorbing cushioned ride, while providing good floor protection and quiet rolling operation. Featuring a weight capacity of 250 lbs., the 75 Shore A TPR wheel tread is chemically bonded to a polyolefin core and has an operating temperature range of -40°to +180° Fahrenheit. It is resistant to cleaning chemicals, acids, alcohol, and water, TPR wheels are an excellent choice for wash-down applications.

For more info, check out Caster Wheel Types.
