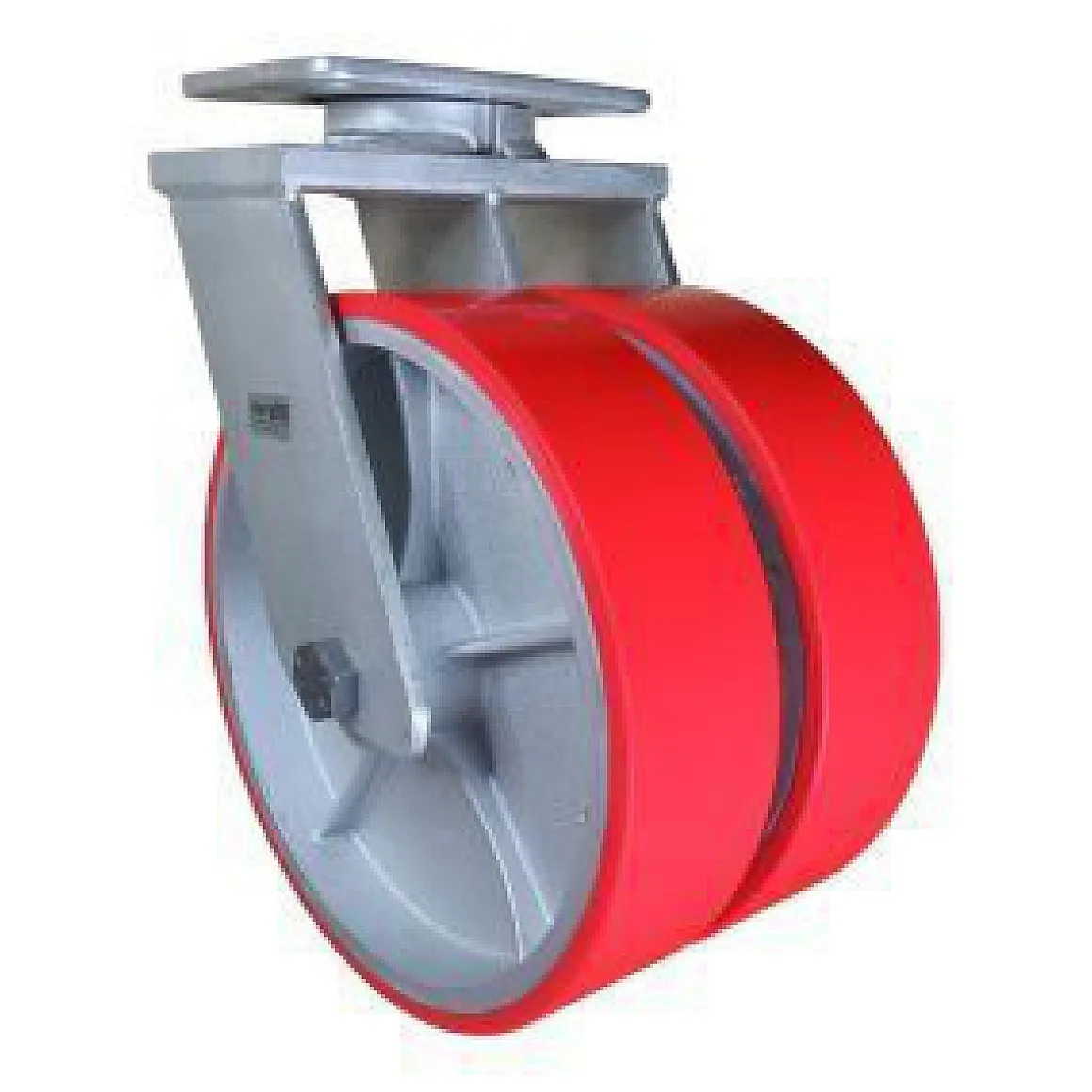

12″ Dual-Wheel Polyurethane Kingpinless Swivel Caster

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  15-1/2″

• Weight Capacity

  7,000 lbs.

• Color

  Red

• Wheel Configuration

  Dual Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Roller Bearing

• Core Material

  Steel

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  11-1/8″

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  55 lbs

You’re viewing caster SKU 1230-D2-979 This product is a 12″ Dual-Wheel Polyurethane Kingpinless Swivel Caster with a weight capacity of 7,000 lbs. per caster. This product has an overall height of 15-1/2″. Additional product specs can be found on the Specifications tab of this product page.Have questions or want a quote? Our solutions experts are available to help!
