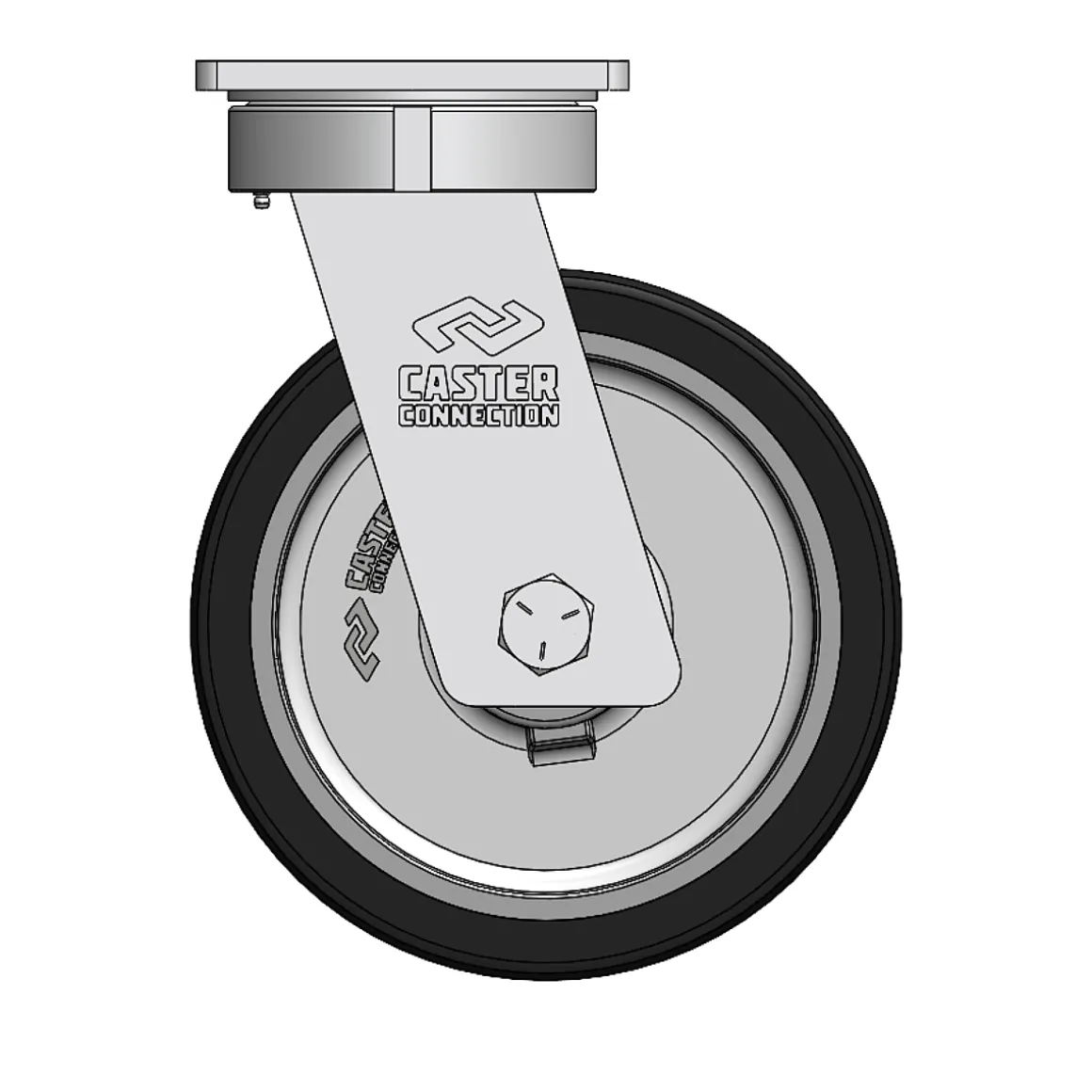

12″ CC Dynamo 95A Heavy Duty Kingpinless Swivel Caster

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  15-1/2″

• Weight Capacity

  7,000 lbs.

• Wheel Brand

  CC Dynamo 95A – Caster Connection

• Color

  Black

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  6206-RS Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  6-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  4-1/2″ x 6″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 business days

• Swivel Radius

  8-1/4″

• Axle Type

  Solid Axle

• Durometer

  95 Shore A (+/- 3)

• Fork Finish

  Zinc Plated

• Temperature Range

  -25 to +180 F

• Application

  Manual Push/Pull, Ergonomic Concerns

• Environment

  Indoor, Outdoor

• Industry

  Aerospace, Automotive, Load Banks, Modular Home Building, Heavy Industrial Manufacturing

• Noise Reduction

  No

• Related Products

  CC-9295A-012300-40-TV

• Dust Cap

  No

• Ship Weight

  58.6 lbs

CC-9495A-012300-40-TV is a 12″ CC Dynamo (95A) Heavy Duty Kingpinless Swivel Caster featuring a 12″ x 3″ 95 Shore A (+/- 3) Polyurethane on Cast Iron Crown Tread wheel in a Kingpinless Swivel rig, with an overall height of 15-1/2″. This caster features a 6-1/4″ x 7-1/4″ top plate, a 6206-RS Ball Bearing and has a weight capacity of 7,000 lbs.

Quiet Control and Confident Carrying

CC Dynamo 95A uses a 95 Shore A polyurethane tread that is firm enough for heavy-duty towing yet slightly softer than the 70 Shore D version, allowing a small amount of compression. This subtle give helps dampen vibration and reduce harsh impact while maintaining the strength and stability needed for automated vehicles and tugger systems. The tread protects sealed or coated floors from damage while supporting demanding powered transport. CC Dynamo 95A delivers the right balance of load capacity, controlled movement, and ride quality for applications where durability and consistency are critical.

Built for Demanding Powered Transport

Available in 6″, 8″, 10″, and 12″ diameters with a 3 width, CC Dynamo 95A is built for the weight and stress of powered towing, AGVs, AMRs, and more.

Each wheel size is rated for the following maximum loads:

• 6 x 3: 2,500 lbs
• 8 x 3: 3,600 lbs
• 10 x 3: 5,000 lbs
• 12 x 3: 7,000 lbs

These options give engineers and operations teams the flexibility to match wheel size and capacity to their specific equipment and transport systems. CC Dynamo 95A pairs seamlessly with premium rig options such as the CC Brawn kingpinless rig and the CC Forge forged kingpin rig, while the 6 size uses the CC Armor rig to maintain proper clearance and strength. Directional locks, floor locks, and face contact brakes are fully compatible for added control in automated and tugger-driven systems.
