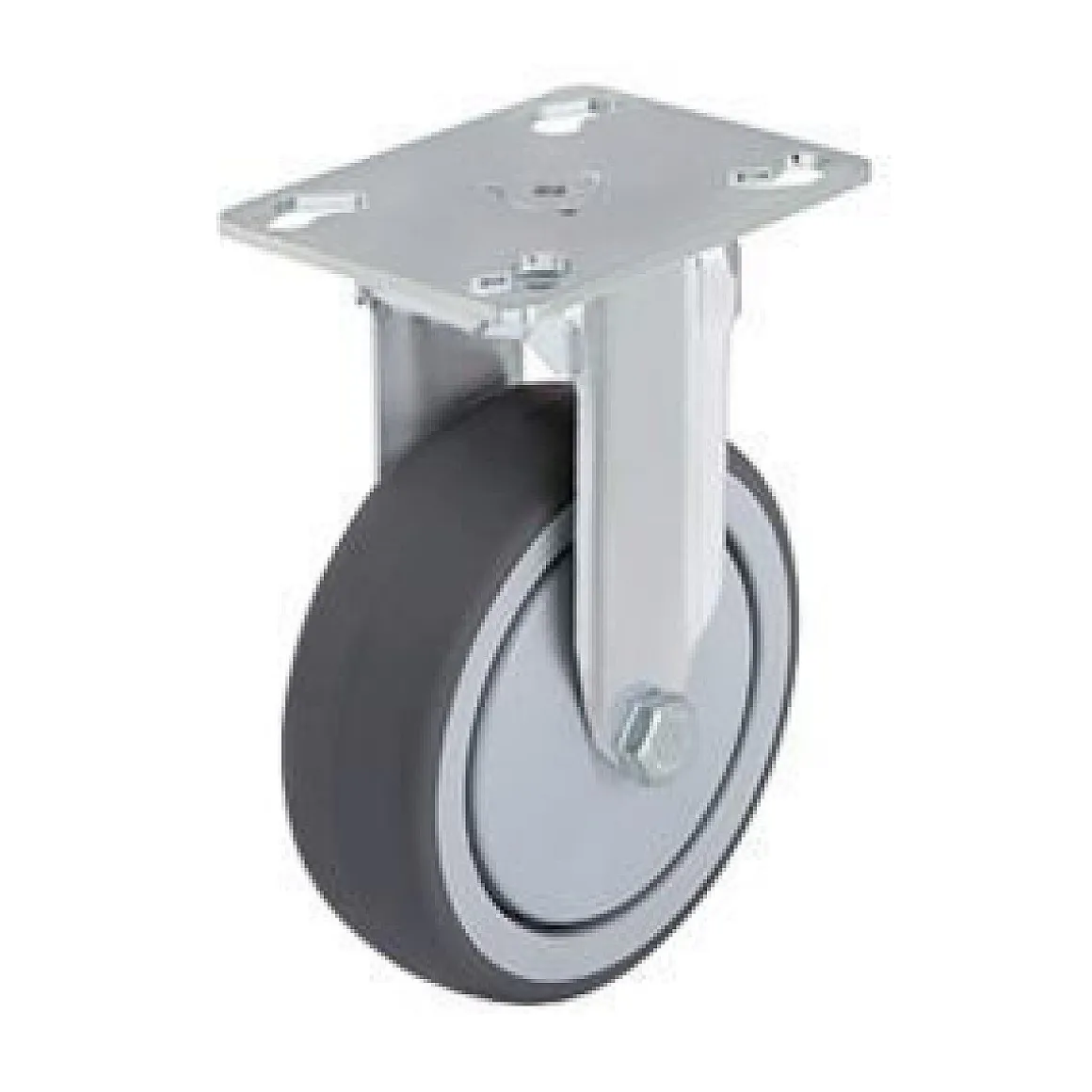

100 mm Thermoplastic Rubber Rigid Caster

• Wheel Diameter

  100 mm

• Wheel Width

  32 mm

• Overall Height

  136 mm

• Weight Capacity

  110 kg

• Wheel Brand

  Blickle

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Plain Bore

• Core Material

  Polypropylene

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  90 mm x 66 mm

• Top Plate Bolt Hole Pattern

  75 mm x 45 mm slotted to 61 mm x 51 mm

• Mounting Bolt Size

  8.5 mm

• Lead Time to Ship

  Contact Us for Lead Time

• Durometer

  85 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -20 to +60 C

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2 lbs

You’re viewing caster SKU BKPA-TPA 101G This 100 mm x 32 mm Gray Blickle Rigid Caster has a weight capacity of 110 kg per caster. This product has an overall height of 136 mm. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.Have questions or want a quote? Our solutions experts are available to help!
