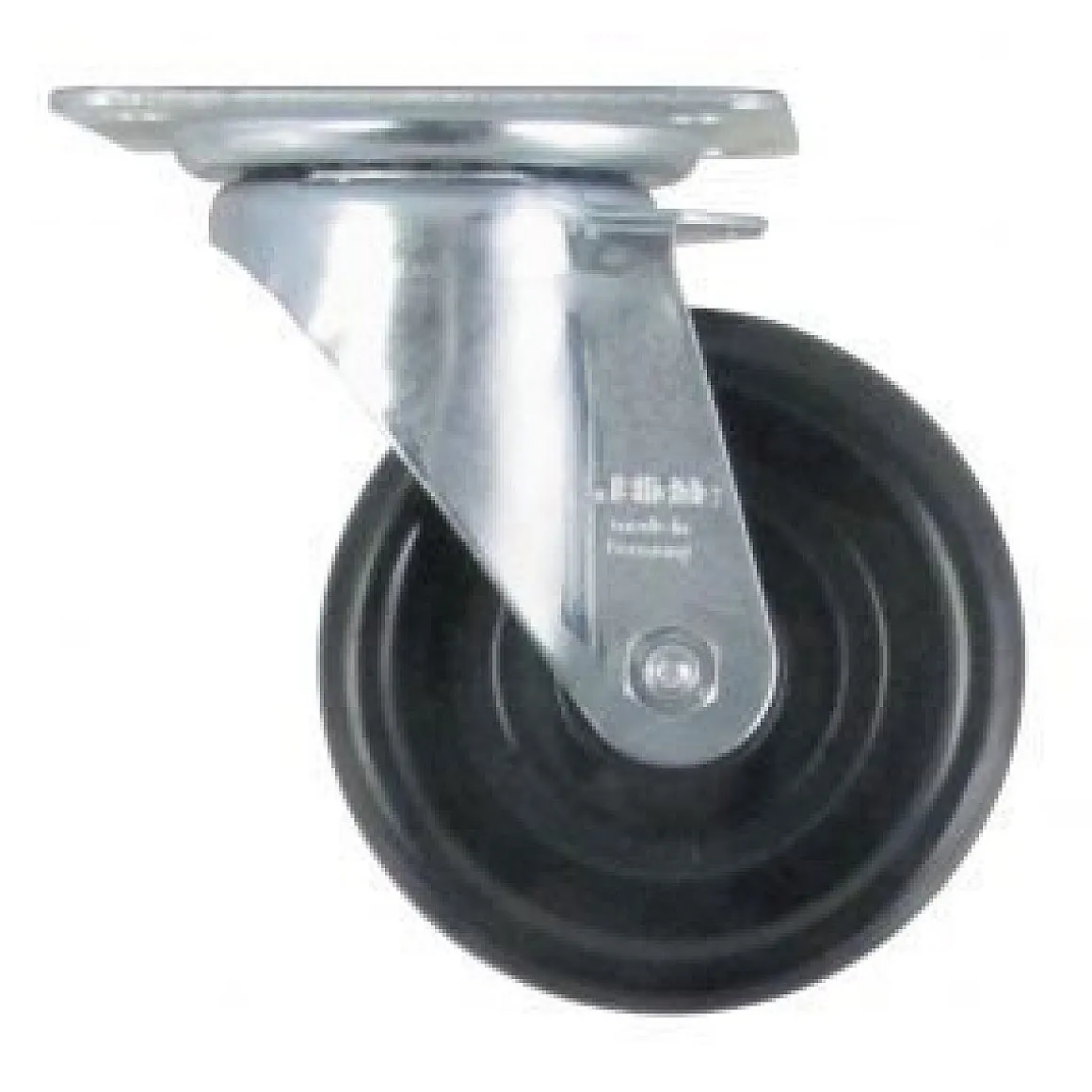

100 mm Phenolic Swivel Caster

• Wheel Diameter

  100 mm

• Wheel Width

  38 mm

• Overall Height

  125 mm

• Weight Capacity

  330.693 lbs.

• Wheel Brand

  Blickle

• Color

  Black

• Wheel Configuration

  Single Wheel

• Wheel Material

  Phenolic

• Bearing Type

  Ball Bearing

• Core Material

  Zinc-Plated Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  3.9375″ x 3.3464″

• Lead Time to Ship

  Contact Us for Lead Time

• Swivel Radius

  1.42

• Axle Type

  Solid Axle

• Durometer

  90 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +250 F

• Application

  Manual Push/Pull

• Environment

  Indoor

• Floor Type

  Indoor

• Industry

  Scaffolds, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.5 lbs

You’re viewing caster SKU LI-PHN 102G

This 100 mm x 38 mm Phenolic Swivel Caster offers high weight capacities, and easy roll ability on clean, debris-free floors. Featuring weight capacities of 300 to 8,000 pounds per wheel, the 90 Shore D wheel is made from phenolic resin mixed with macerated canvas and has an operating temperature range of -50° F to +250° F. While resistant to oil, grease, and solvents, phenolic wheels become sponges to liquids when they are chipped or damaged, so this wheel is not recommended for applications which operate where water is present.

For more info, check out Caster Wheel Types.
