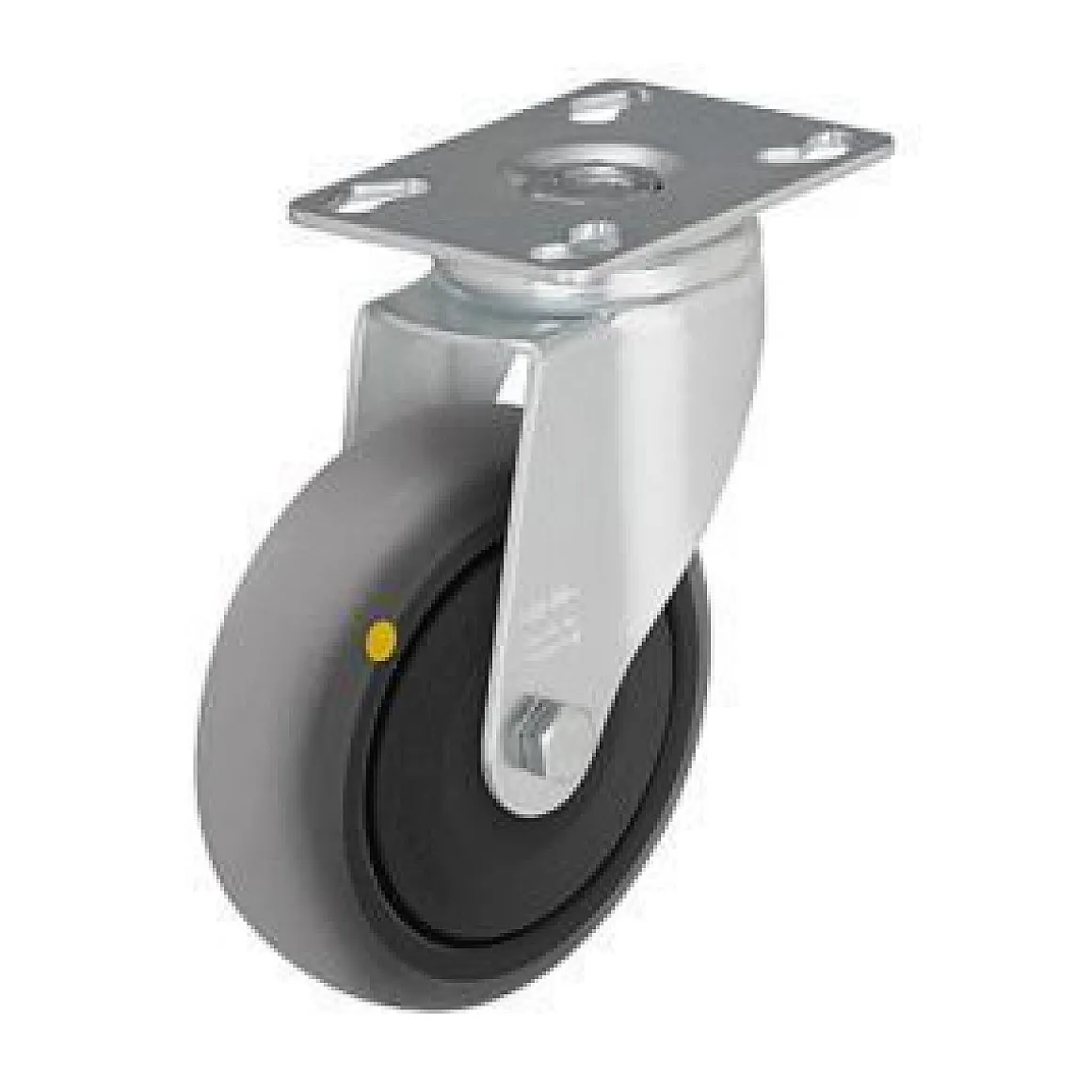

100 mm Electrically-Conductive TPR Swivel Caster

• Wheel Diameter

  100 mm

• Wheel Width

  25 mm

• Overall Height

  123 mm

• Weight Capacity

  70 kg

• Wheel Brand

  Blickle

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Plain Bore

• Core Material

  Polypropylene

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  60 mm x 60 mm

• Top Plate Bolt Hole Pattern

  38 mm x 38 mm slotted to 48 mm x 48 mm

• Mounting Bolt Size

  6.2 mm

• Lead Time to Ship

  Contact Us for Lead Time

• Durometer

  85 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -20 to +60 C

• Environment

  Delicate Flooring, Electrostatic Discharge Present, Indoor, Low Noise Necessary, Mild Chemicals, Medical, Oil & Grease, Steam, Water

• Noise Reduction

  No

• Anti Static

  Yes

• Ship Weight

  2 lbs

You’re viewing caster SKU LPA-TPA 100G-ELS This 100 mm x 25 mm Gray Blickle Kingpin Swivel Caster has a weight capacity of 70 kg per caster. This product has an overall height of 123 mm. Product specs (including lead time) can be found on the Specifications tab of this page.
