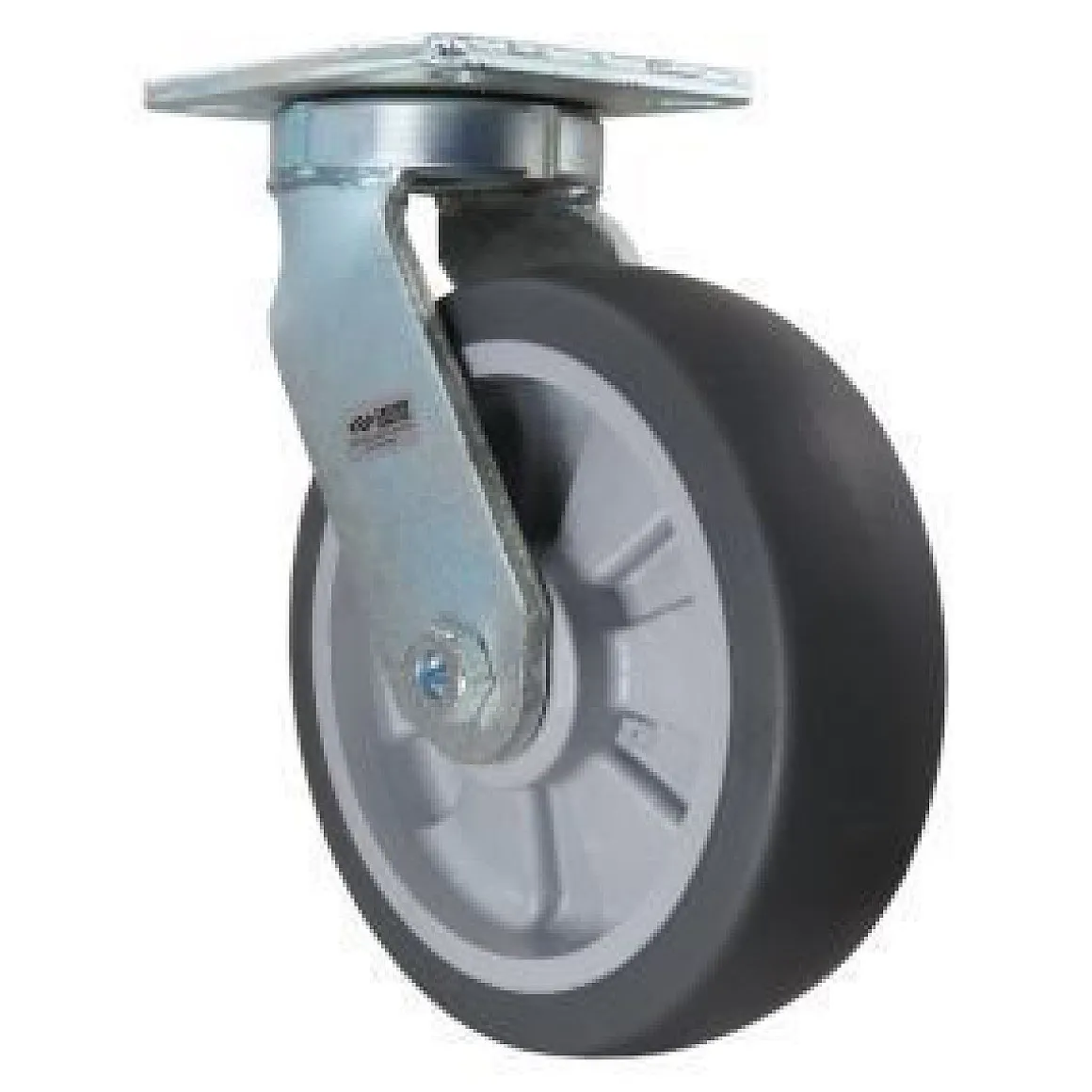

10″ Thermoplastic Rubber Kingpinless Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  900 lbs.

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Thermoplastic Rubber

• Bearing Type

  Roller Bearing

• Core Material

  Polyolefin

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  8-1/32″

• Axle Type

  Zirc Axle

• Durometer

  75 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -20 to +180 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  19.95 lbs

You’re viewing caster SKU 1030-S-KP-TPR-TP2-OH2 This product is a 10″ Thermoplastic Rubber Kingpinless Swivel Caster with a weight capacity of 900 lbs. per caster.
