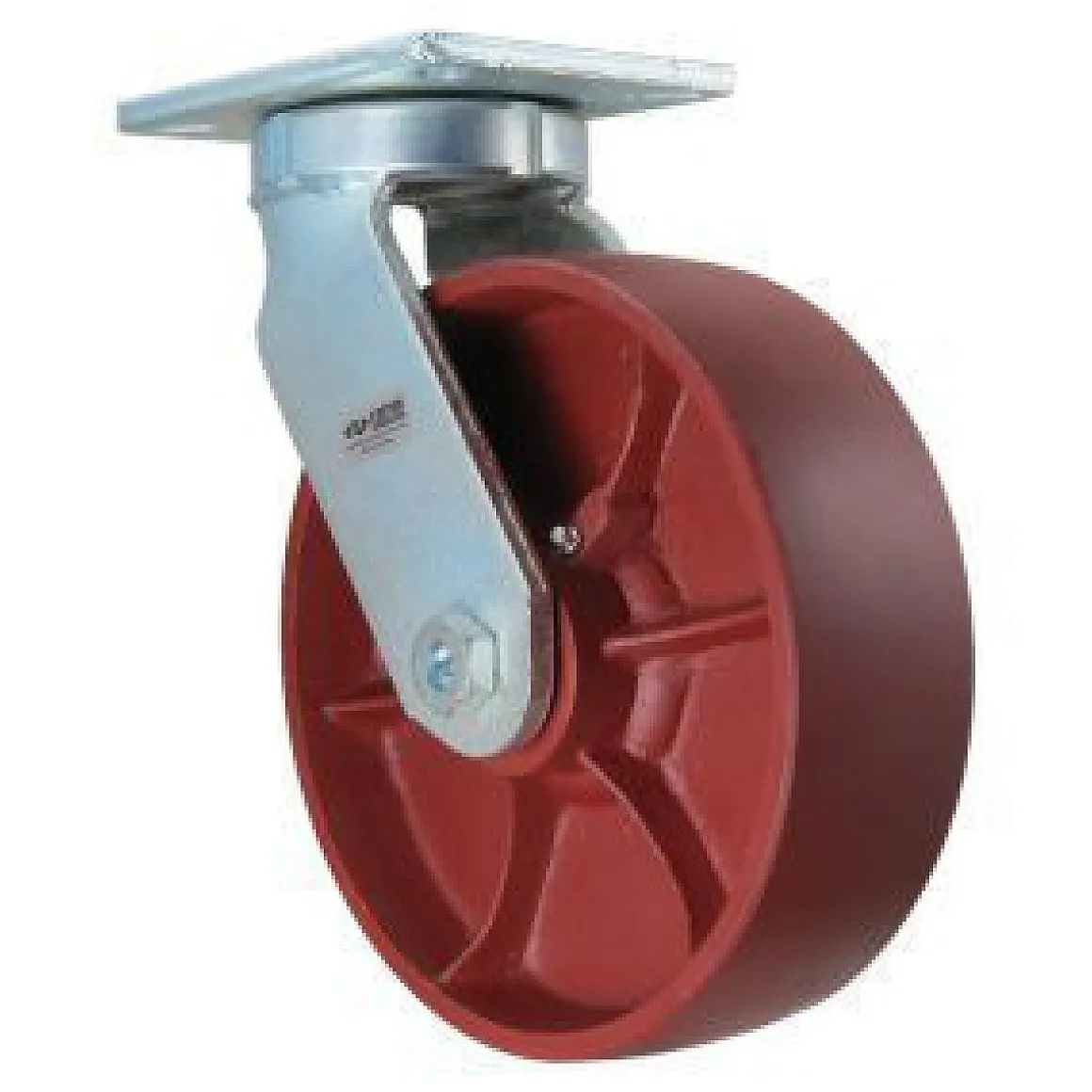

10″ Crown-Tread Ductile Steel Kingpinless Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  3,500 lbs.

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Ductile Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  8-1/32″

• Axle Type

  Zirc Axle

• Alternate SKU

  1030-S-KP-CD-TP2-OH2, DD-55DS-010300-30-T7

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  37.75 lbs

You’re viewing caster SKU DD-55DS-010300-30-T7 This product is a 10″ Crown-Tread Ductile Steel Kingpinless Swivel Caster with a weight capacity of 6,000 lbs. per caster. This product has an overall height of 12-1/2″.
