10″ CC Juggernaut Cast Nylon Forged Kingpin Swivel Caster

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  10,000 lbs.

• Wheel Brand

  CC Juggernaut – Caster Connection

• Color

  White

• Tread Style

  Flat Tread

• Wheel Material

  Cast Nylon

• Bearing Type

  6310-RS Ball Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  6-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  4-1/2″ x 6″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 business days

• Swivel Radius

  7-7/8″

• Axle Type

  Solid Axle

• Durometer

  80 Shore D (+/- 3)

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +180 F

• Application

  Manual Push/Pull, Ergonomic Concerns

• Environment

  Indoor, Outdoor

• Industry

  Aerospace, Automotive, Load Banks, Modular Home Building, Heavy Industrial Manufacturing

• Noise Reduction

  No

• Related Products

  CC-92CN-010300-40-TV

• Dust Cap

  No

• Ship Weight

  39.6 lbs

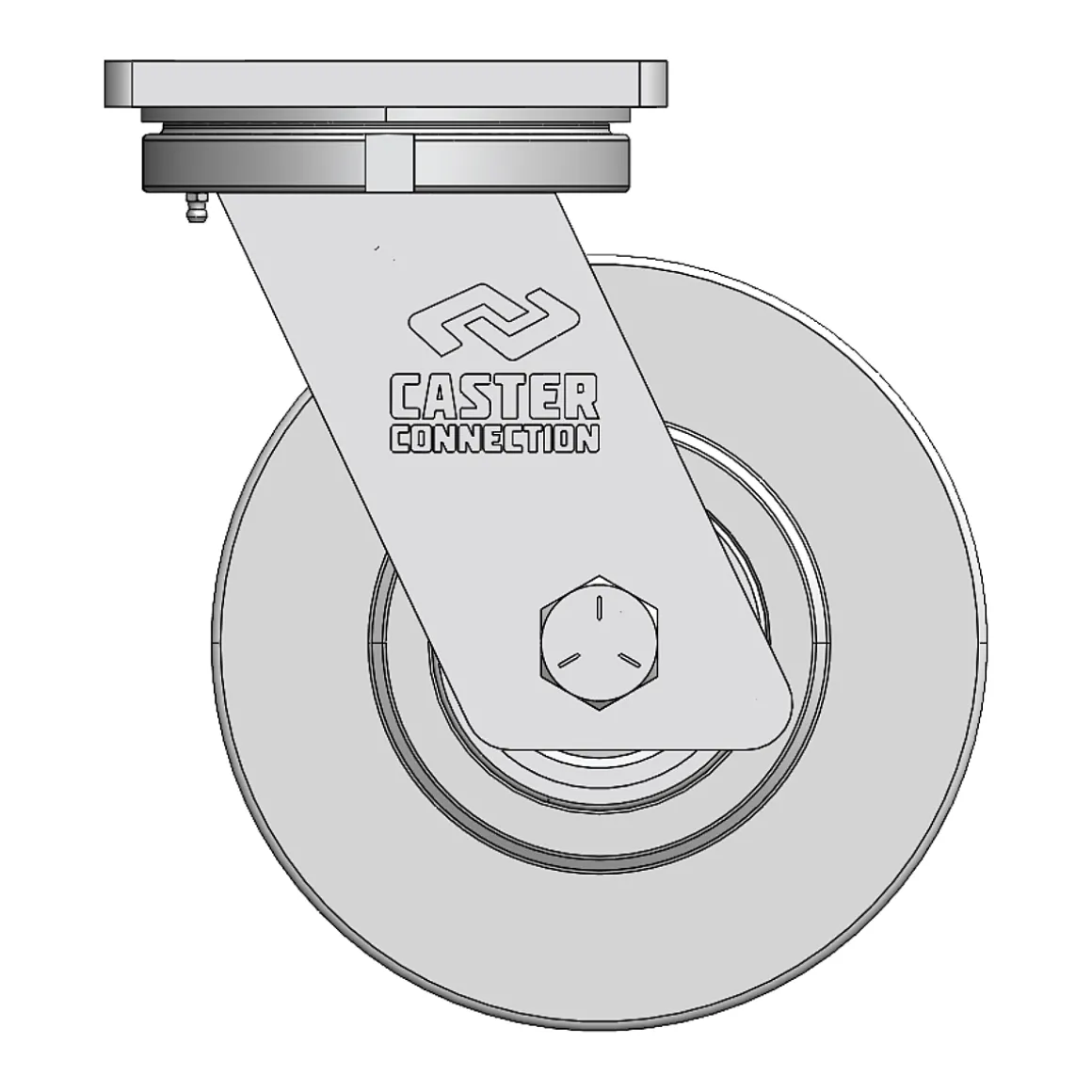

CC-93CN-010300-40-TV is a 10″ CC Juggernaut Cast Nylon Forged Kingpin Swivel Caster featuring a 10″ x 3″ 80 Shore D (+/- 3) Cast Nylon on Flat Tread wheel in a Kingpin Swivel rig, with an overall height of 10-1/2″. This caster features a 6-1/4″ x 7-1/4″ top plate, a 6310-RS Ball Bearing and has a weight capacity of 10,000 lbs.

CC Juggernaut wheels integrate seamlessly with both standard and custom caster rigs, giving engineers and operations teams flexibility when designing for extreme loads. For optimal performance in the most demanding applications, CC Juggernaut is commonly paired with premium heavy-duty rigs such as CC Brawn, a kingpinless rig designed to distribute impact and side loads evenly in high-impact environments, or CC Forge, a forged kingpin rig available in rigid and swivel configurations that offers precision, serviceability, and exceptional load support.

Built for the Heaviest Jobs On Earth

The CC Juggernaut wheel is engineered for the most demanding industrial loads, where failure is not an option. Unlike molded wheels, it is carved from solid cast nylon to deliver exceptional structural integrity and unmatched load-bearing strength. Heavy-duty, oversized precision ball bearings reduce friction, extend wear life, and keep motion smooth under massive weight while limiting long-term maintenance needs. Each wheel is 3 wide and available in 6″, 8″, 10″, and 12″ diameters.

Load capacities for each size are:

• 6,000 lbs (6×3)
• 10,000 lbs (8×3)
• 13,000 lbs (10×3)
• 15,500 lbs (12×3)

The CC Juggernaut is designed for heavy manual push/pull applications and for environments where moisture or chemicals are present. Its solid, high-durometer nylon construction handles concentrated loads and demanding industrial conditions where traditional nylon and other wheels cannot perform.
